- 28BYJ-48 ULN2003 5V Stepper Motor + ULN2003 Driver Board: A, B, C, D four-phase LED indicates the status of the stepper motor work
- Supply Voltage: 5V 4-phase
- Torque: >34.3mN.m
- Step angle: 5.625 x 1/64
- Reduction ratio: 1/64

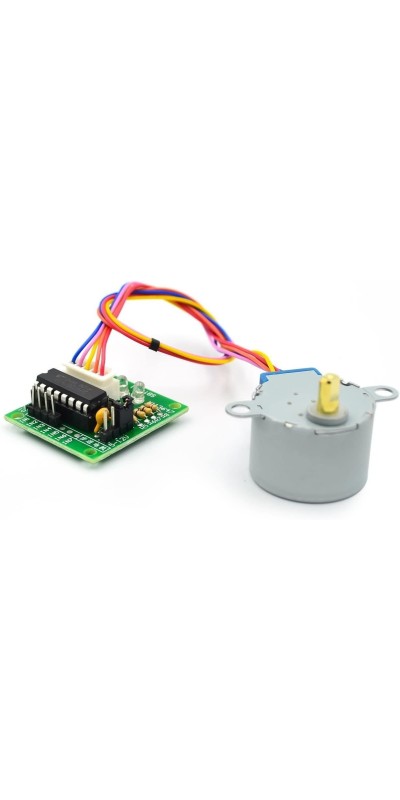

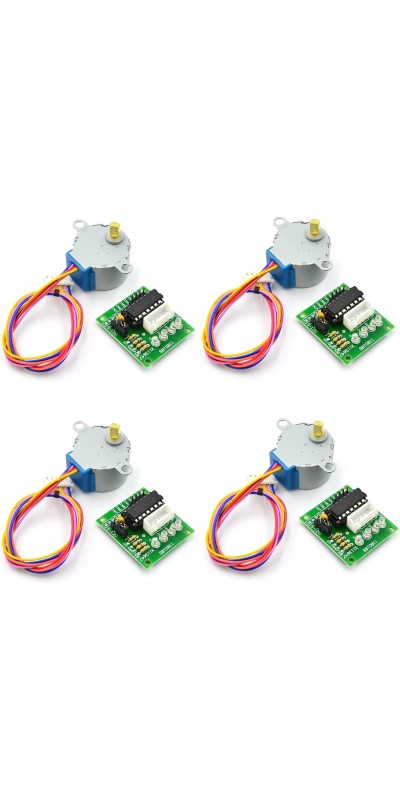

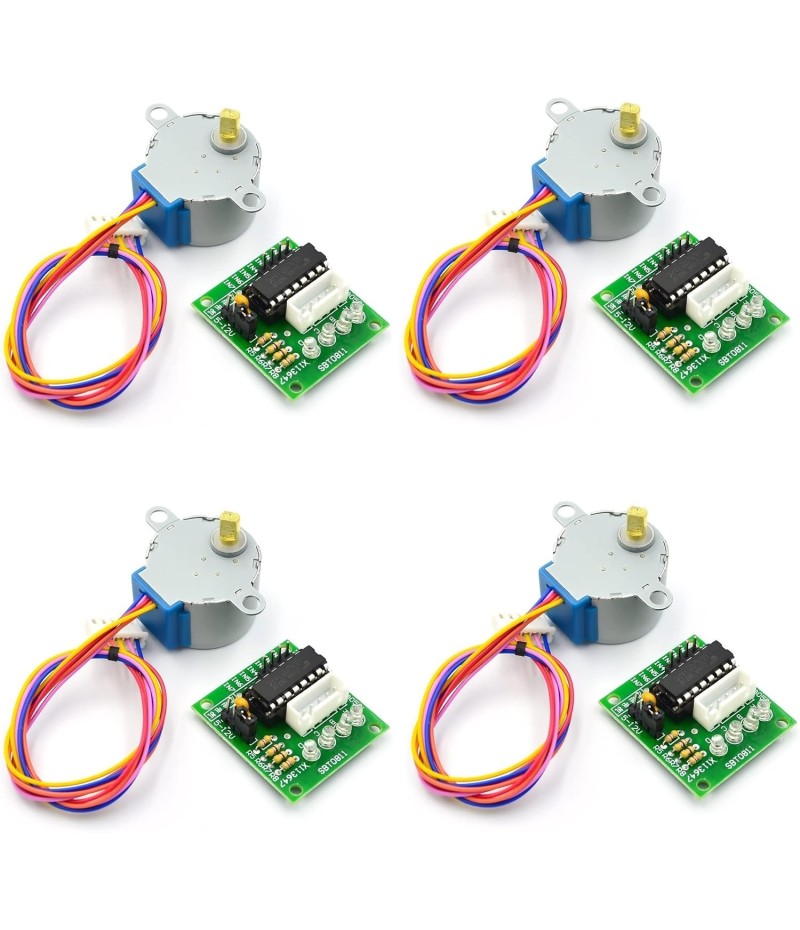

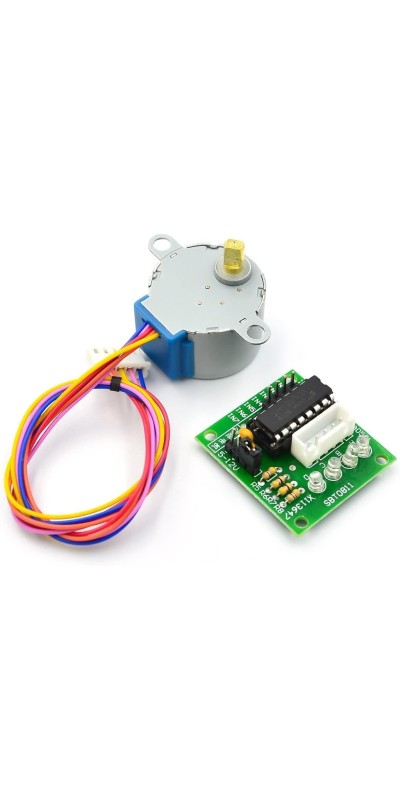

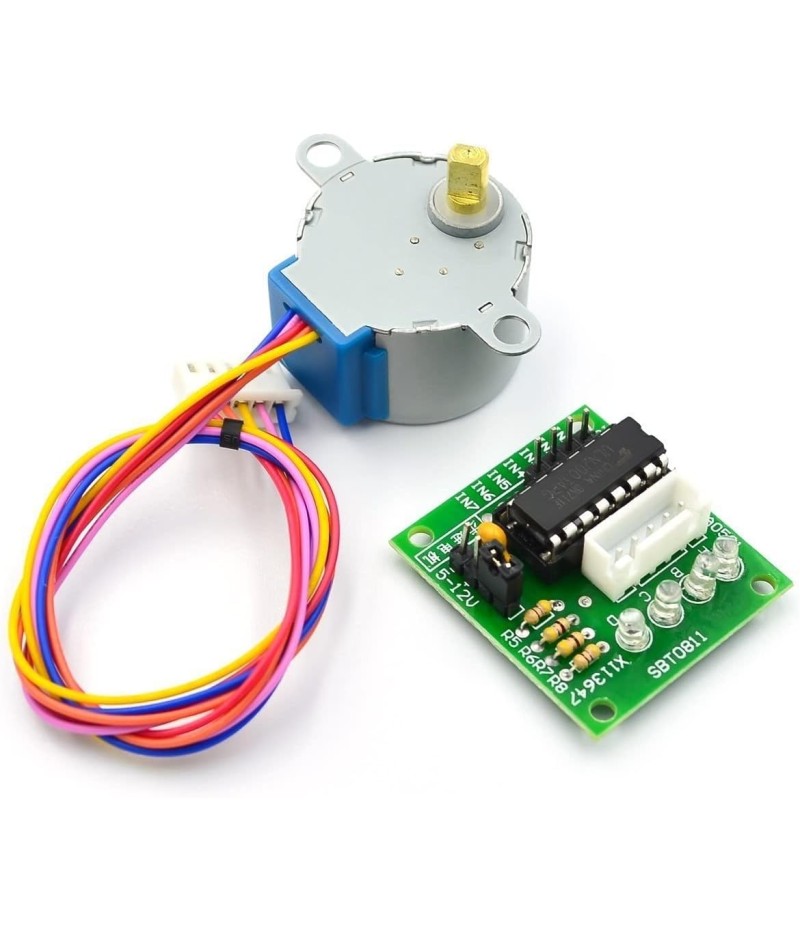

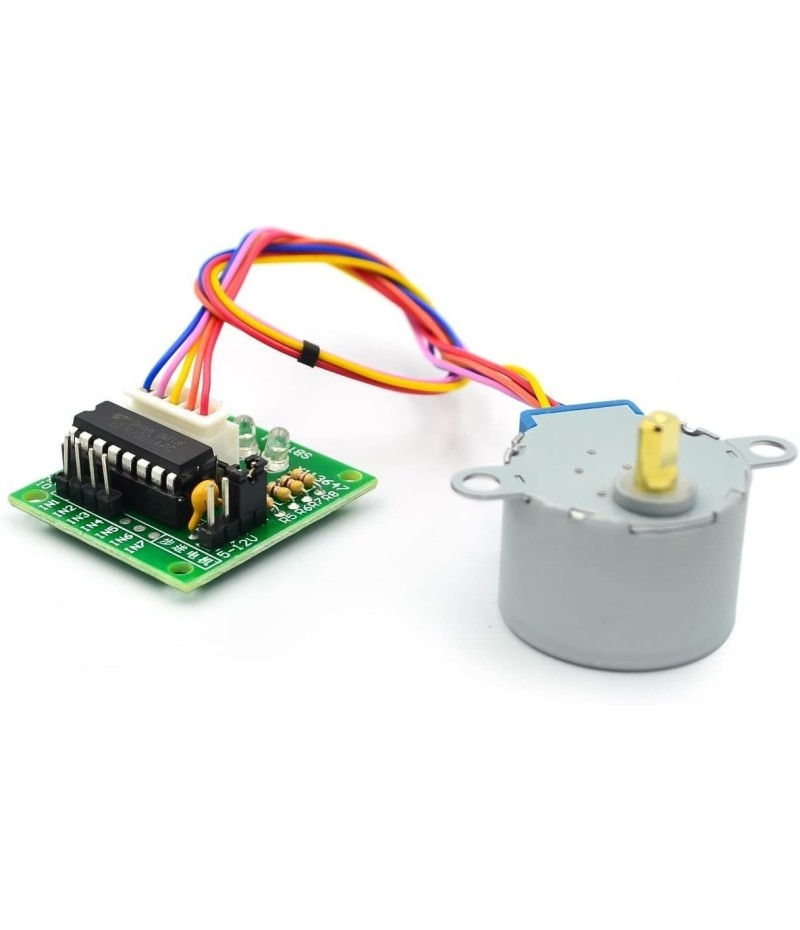

28BYJ-48 ULN2003 5V Stepper Motor + ULN2003 Driver Board for Arduino PI PIC Raspberry Pi
28BYJ-48 ULN2003 5V Stepper Motor + ULN2003 Driver Board: A, B, C, D four-phase LED indicates the status of the stepper motor work.
Supply Voltage: 5V 4-phase
Torque: >34.3mN.m
Step angle: 5.625 x 1/64
Reduction ratio: 1/64
Specification
- A, B, C, D four-phase LED indicates the status of the stepper motor work.
- Stepper motor with a standard interface, when used directly pluggable.
- 5 line 4 phase can be used for ordinary ULN2003 chip driver, connect to the 2 phase , support the development board, with convenient use, direct docking.
- Rated Voltage: DC5V 4-phase
- Insulation Resistance: >10MΩ (500V)
- Dielectric Strength: 600V AC / 1mA / 1s
- Step angle: 5.625 x 1/64
- DC Resistance: 200Ω±7% (25C)
- Reduction ratio: 1/64
- Insulation Grade: A
- No-load Pull in Frequency: >600Hz
- No-load Pull out Frequency: >1000Hz
- Pull in Torque: >34.3mN.m(120Hz)
- Detent Torque: >34.3mN.m
- Temperature Rise:

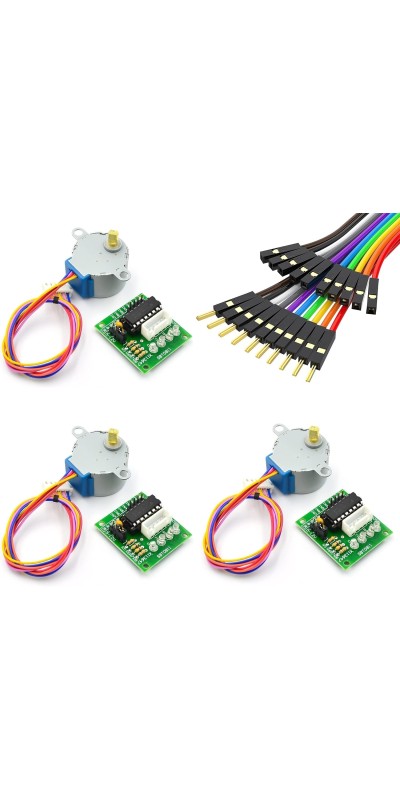

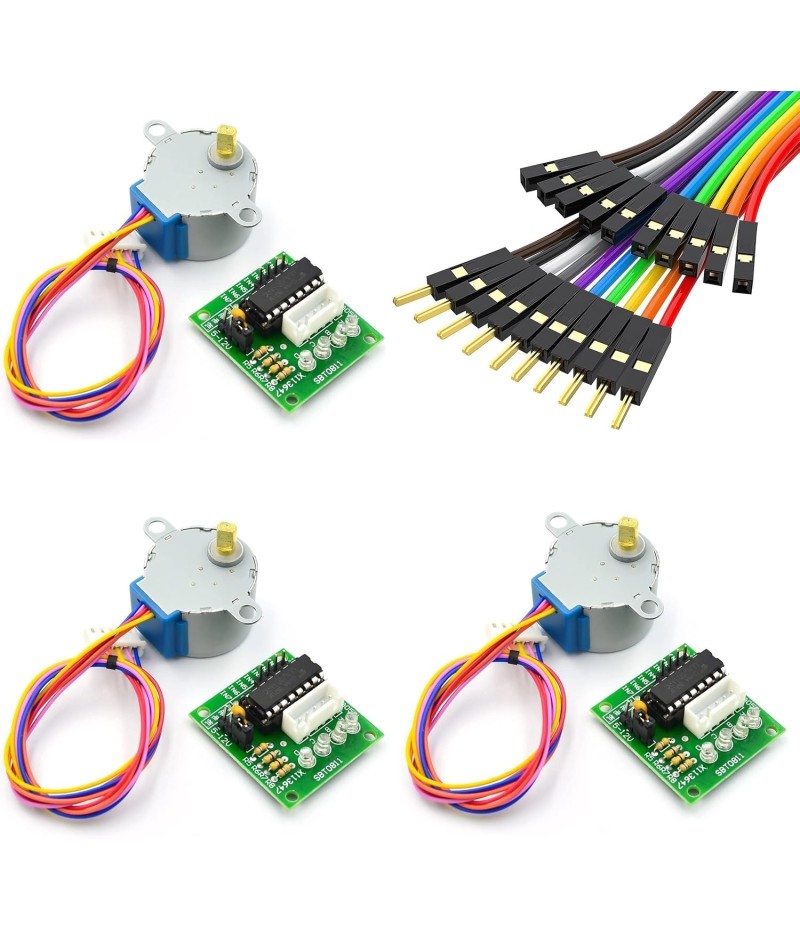

-Package Included:

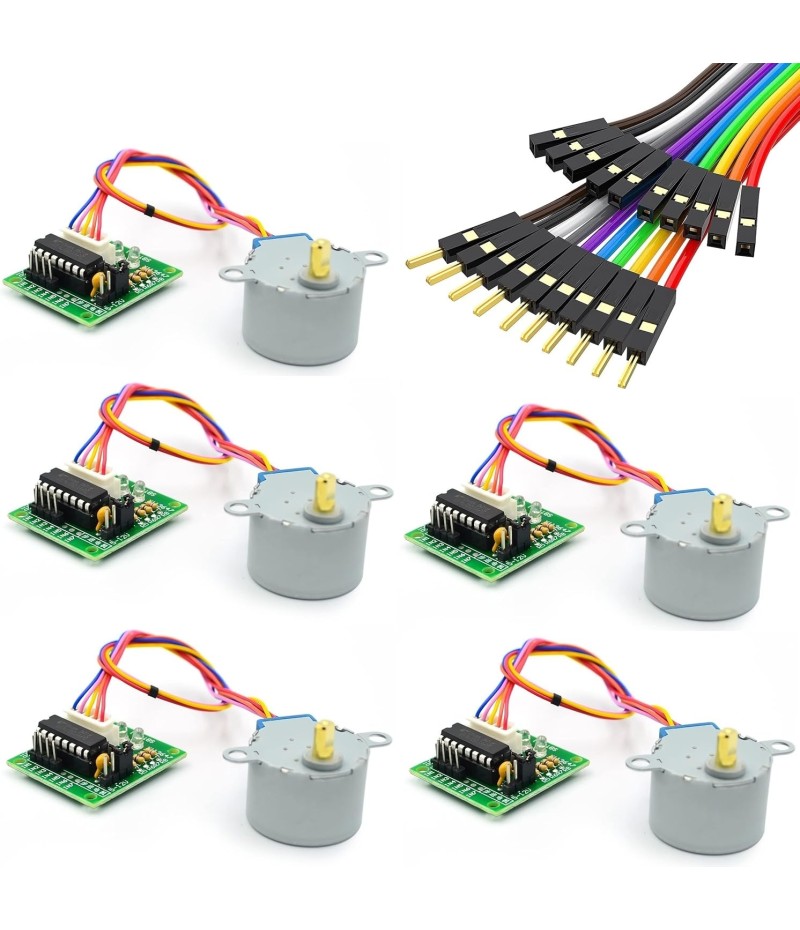

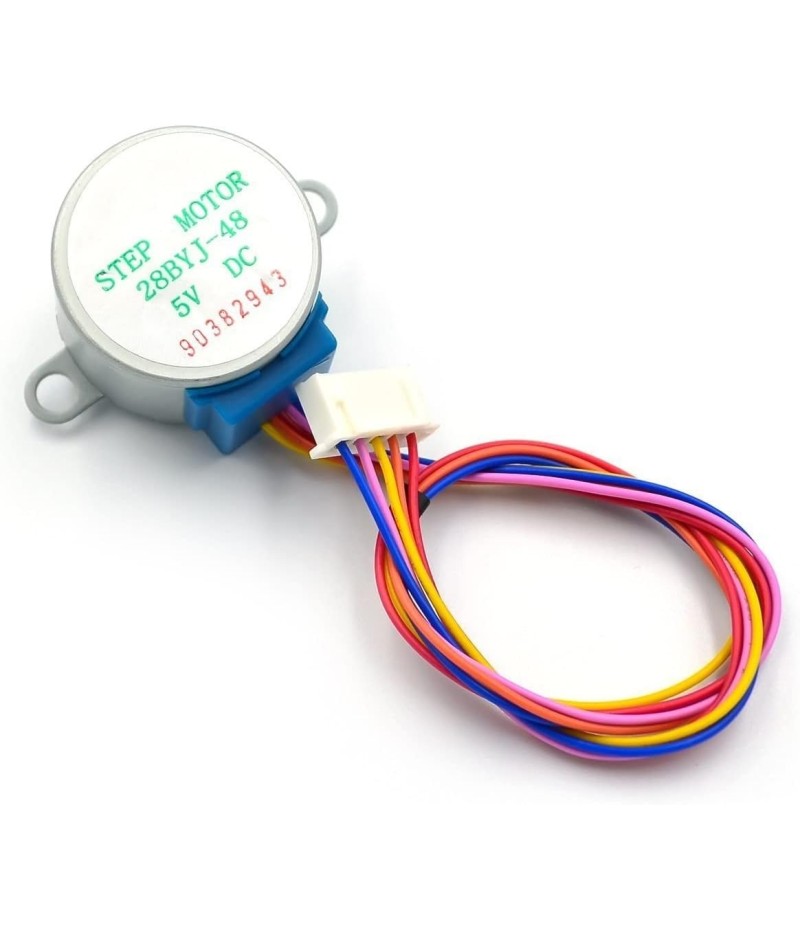

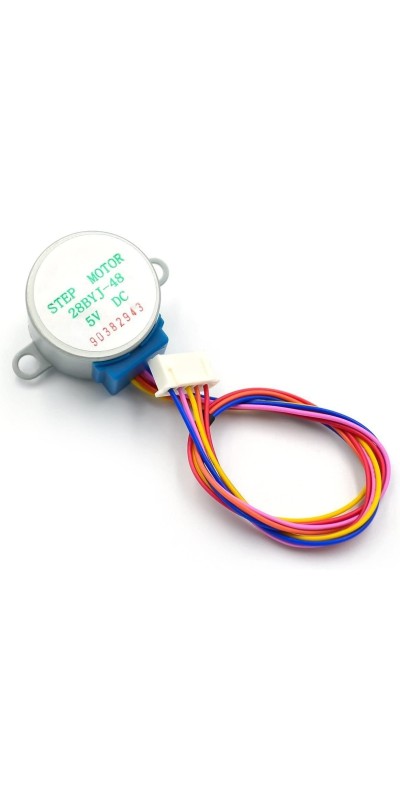

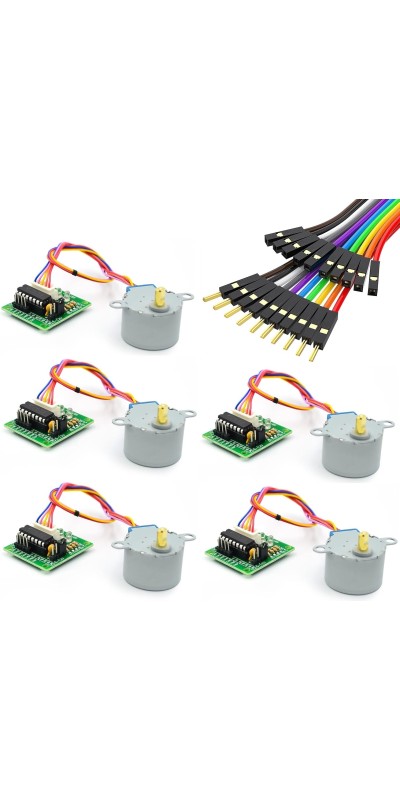

3Pcs 28BYJ-48 ULN2003 5V Stepper Motor
3Pcs ULN2003 Driver Board
10Pin 21cm/8 in Male to Female Jumper Wires.
| General | |
| Brand | WWZMDiB |
| Series | 28BYJ-48 |
| Operating System | Linux |
| Item Weight | 5 ounces |
| Package Dimensions | 4.09 x 3.23 x 1.22 inches |
| Processor Brand | Broadcom |
| Number of Processors | 1 |
| Manufacturer | WWZMDiB |
| ASIN | B0BG4ZCFLQ |
| Date First Available | September 22, 2022 |
| Wireless Type | 802.11bgn |
| Color | Stepper Motor Driver |
