In Stock

0 reviews

$7.53

- **Versatile Power-On Delay Module**: Our 5V/12V delay relay module is perfect for various control situations. Use it for automation projects, household appliances, electronic equipment protection, and more, with a customizable delay from 0.1 seconds to 1 hour.
- **High-Performance & Durable**: Equipped with a high-quality relay, this module supports a maximum load current of 10A and can handle over 100,000 operations. It’s designed to last, ensuring reliability for long-term projects.
- **Easy to Use & Install**: Featuring a double-sided FR-4 PCB and a delay adjustment potentiometer, this module is straightforward to incorporate into your projects. Its compact size (57*30*18.5mm) makes it easy to fit into limited spaces.
- **Safe & Protected**: Built-in protection diode against power reverse connection helps prevent potential damage, keeping your module safe. Ensure proper setup by following our simple guidelines to avoid high voltage issues.
- **Reliable & Efficient**: With a low quiescent current of 2.5mA/5.5mA and a maximum working current of 70mA/42mA, this module is both energy-efficient and powerful, making it ideal for DIY enthusiasts and professionals alike.

Product description

Description

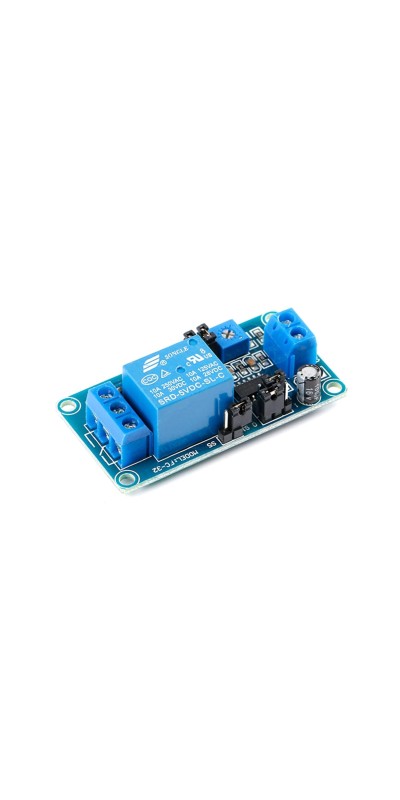

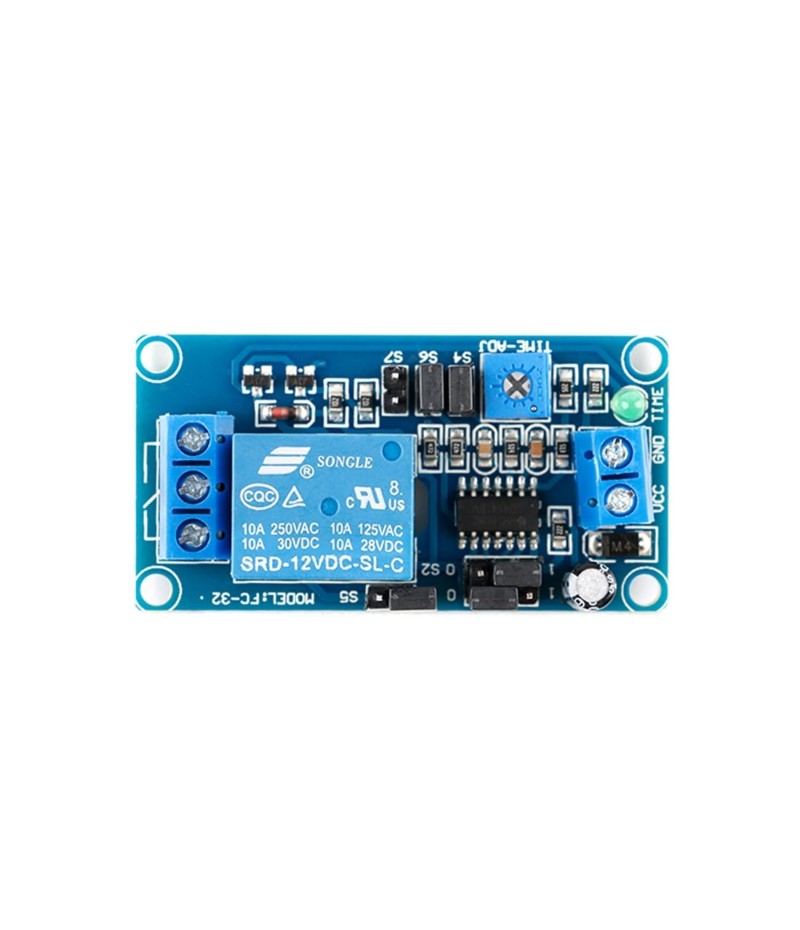

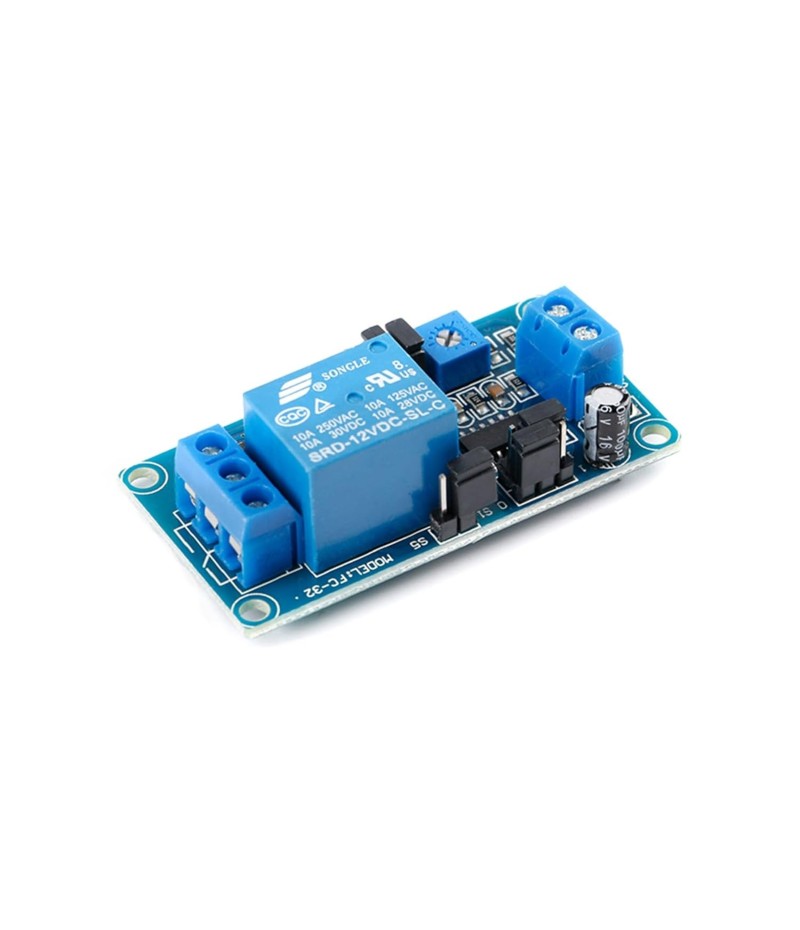

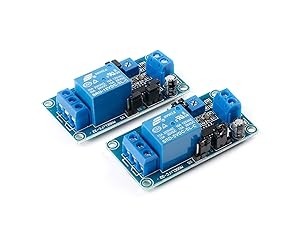

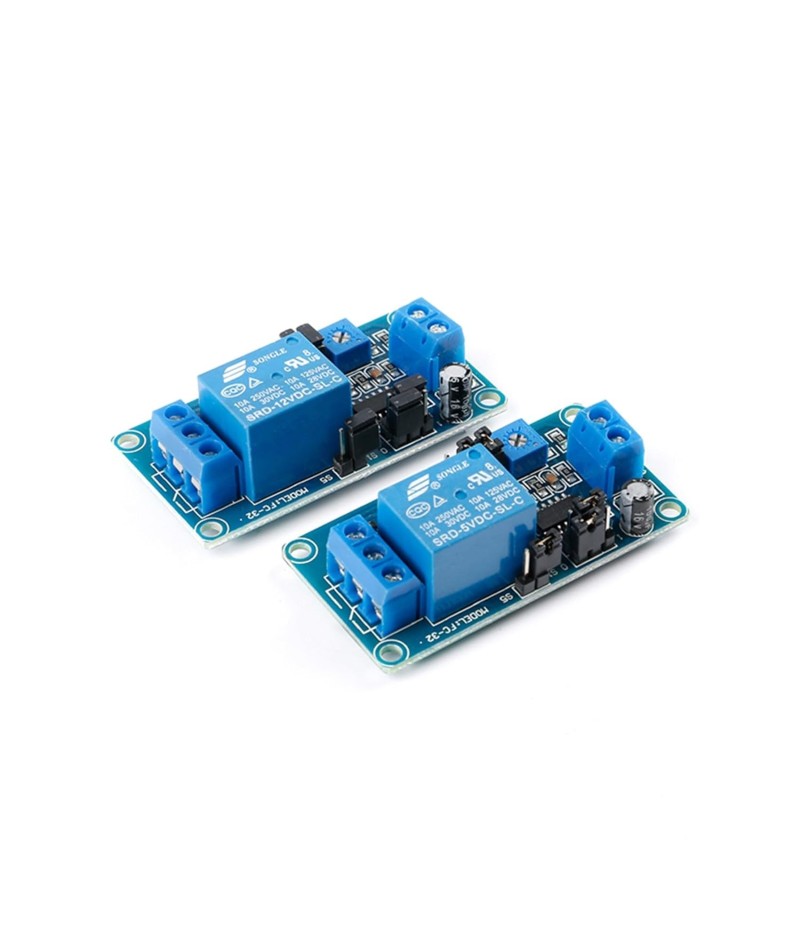

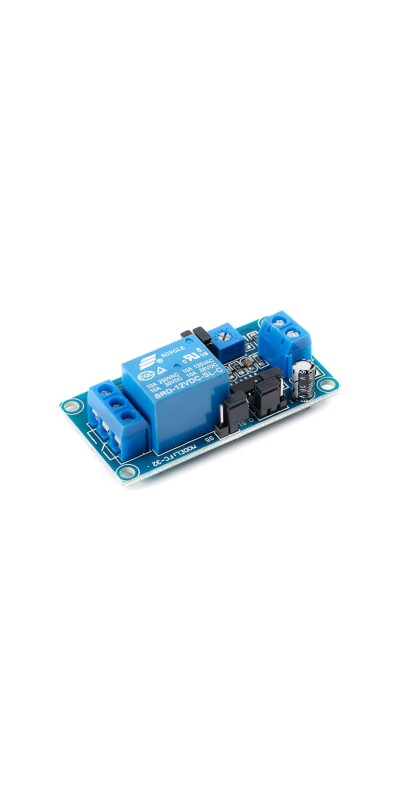

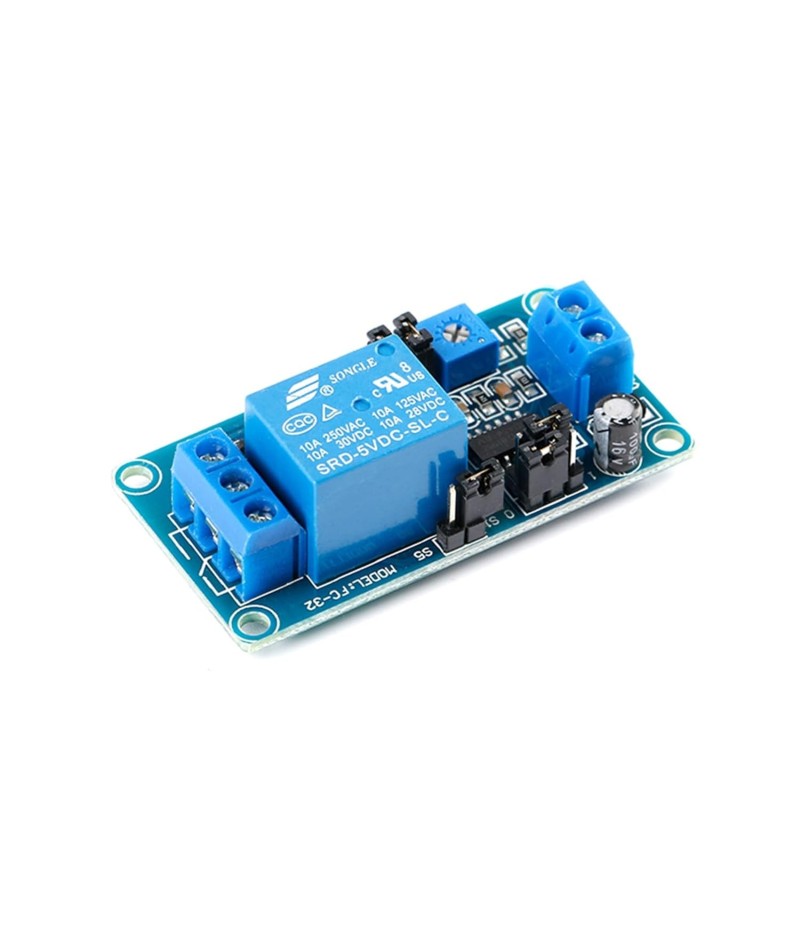

The 5V/12V delay relay module uses high-quality relays with a maximum current of 10A.

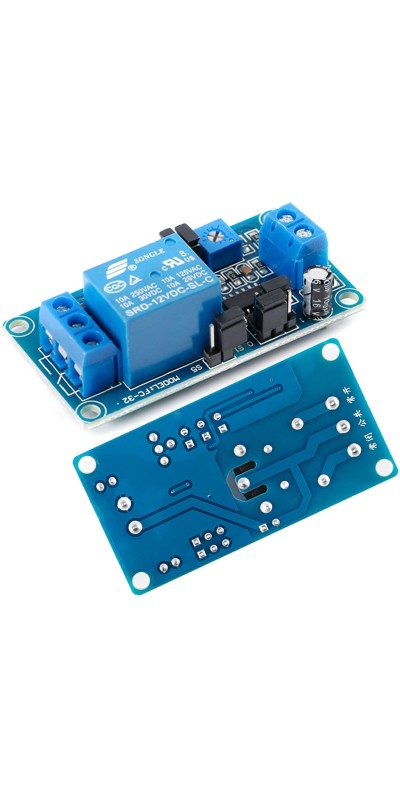

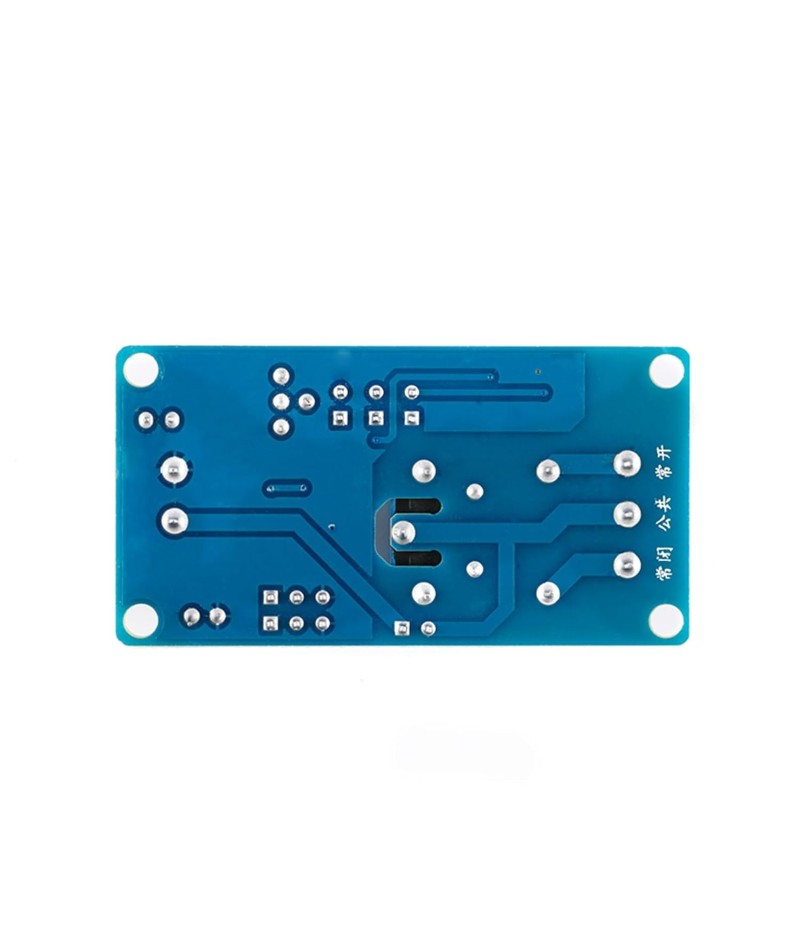

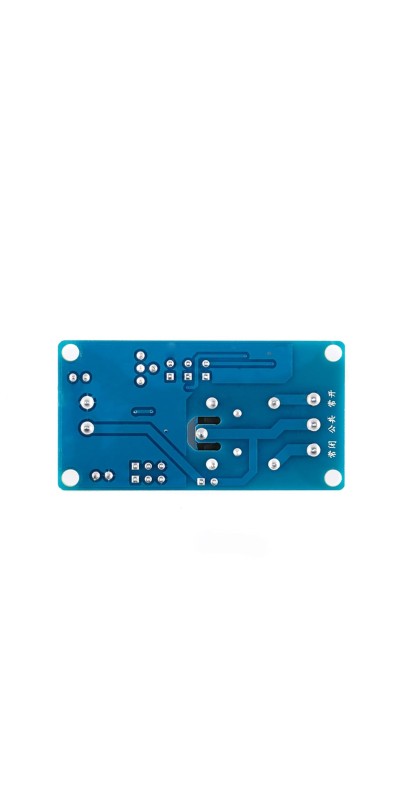

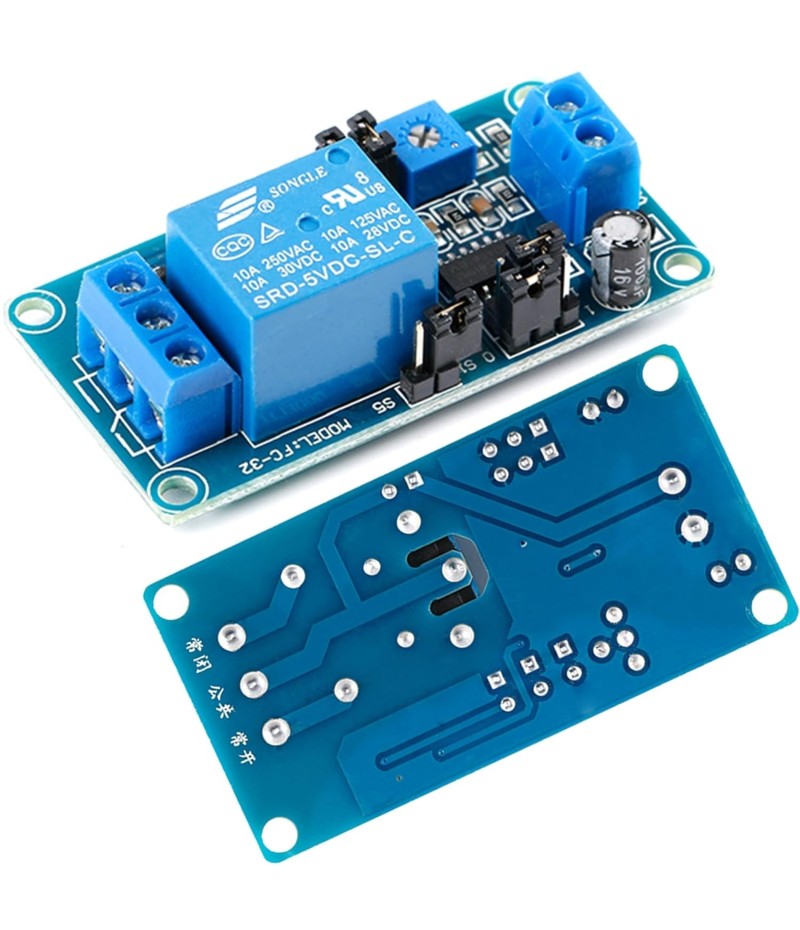

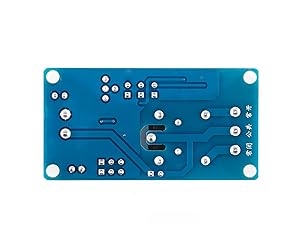

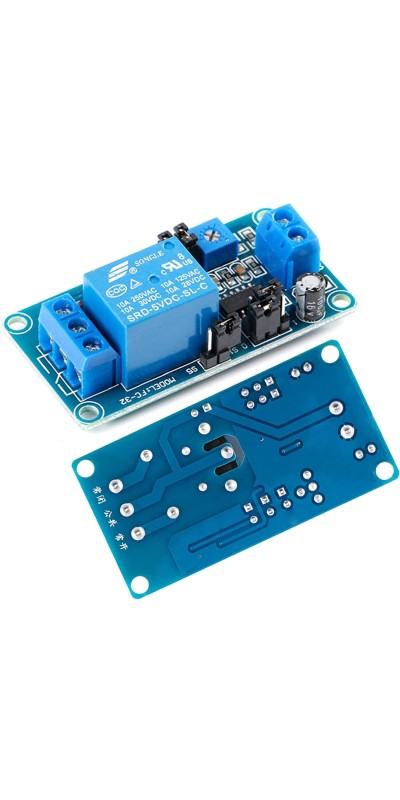

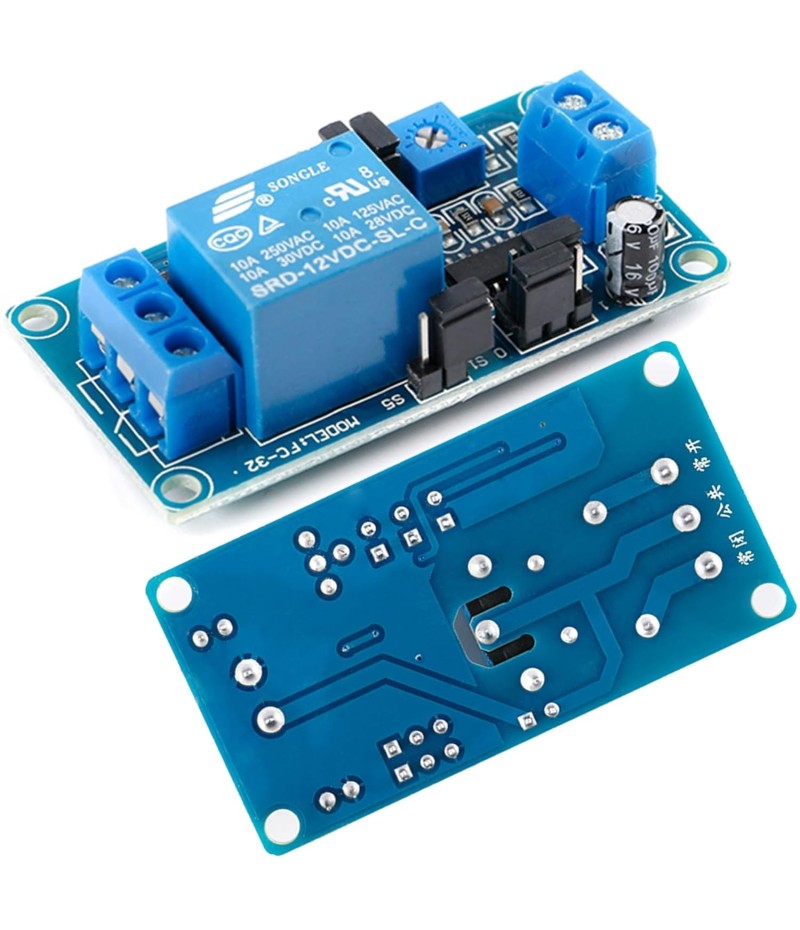

The module uses double-sided FR-4 PCB boards. The overall module layout is reasonable and beautiful.
Use original high-performance delay chip, better performance.

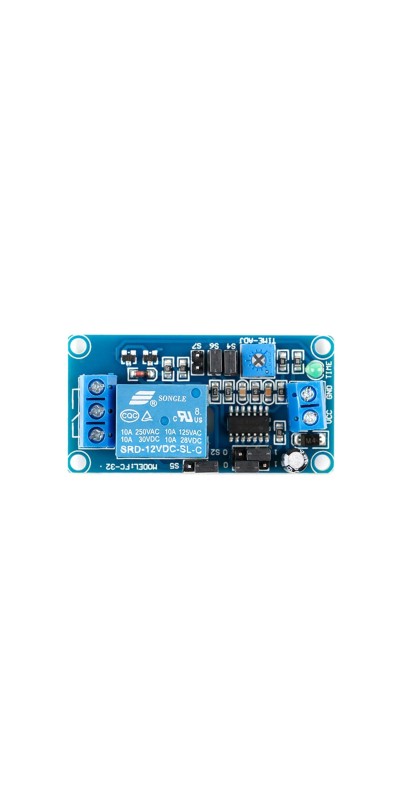

With a delay adjustment potentiometer, the shortest is 0.1S,the longest can be up to 1 hour, and it has a protection diode against power reverse connection,which can effectively protect the product.
The module can be used in various control situations such as driving recorder,GPS start protection, household appliances, electronic equipment protection,PLC control, industrial control, electronic experiment, for arduino robot, etc.
Note:
When the relay controls AC 220V or other DC power supply voltage greater than the VCC terminal,the jumper cap S5 cannot be inserted. If S5 is inserted in this case,the high voltage will flow back into the module, which will burn the module.
Instructions for use:
When the relay is in pull-in, the common terminal is connected to the normally open terminal,and both ends of the load have electricity to work.When the relay is off, the common terminal is connected to the normally closed terminal,and the load does not work without electricity.

High-performance delay chip for better performance

Relay life:	more than 100,000 times
Maximum switching frequency:	5KHz
Product weight:	about 22g

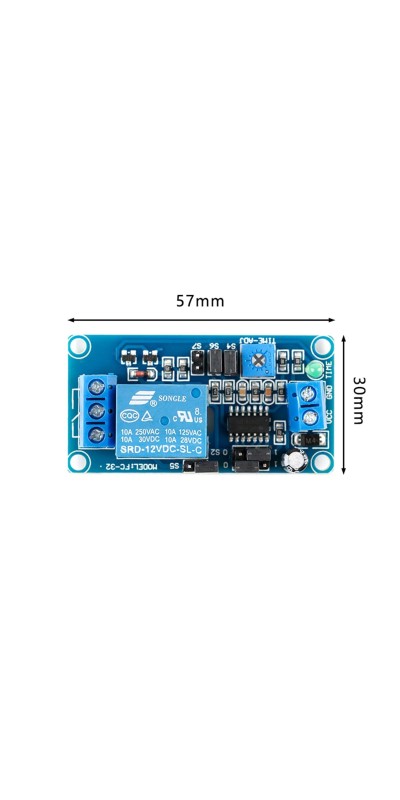

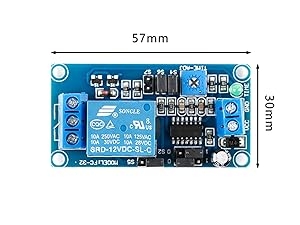

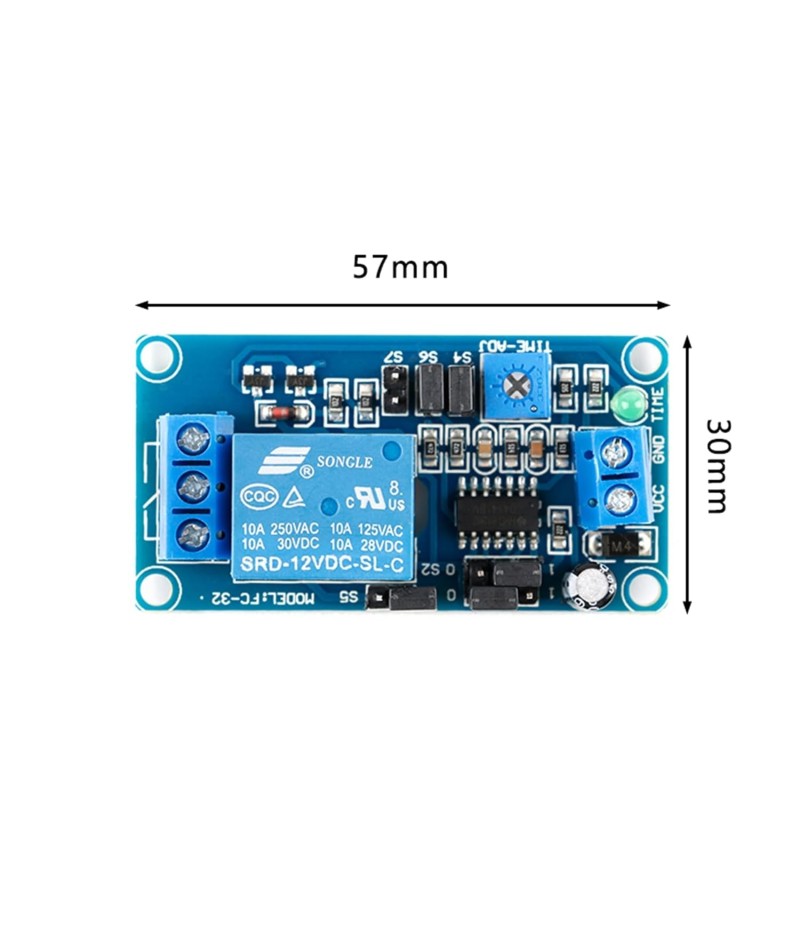

Structure size:	573018.5mm (length * width * height)
