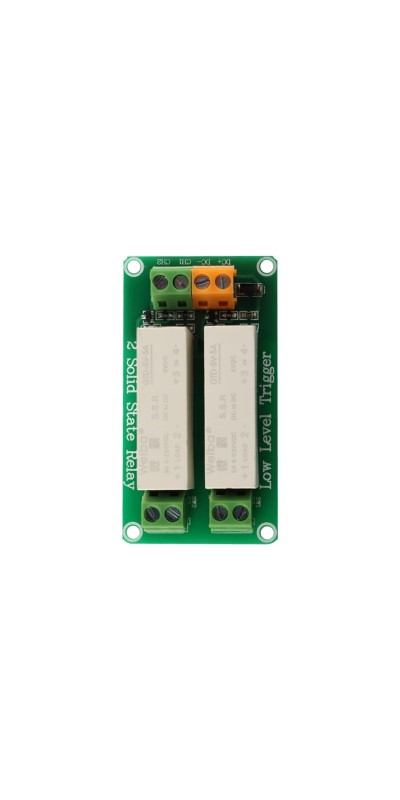

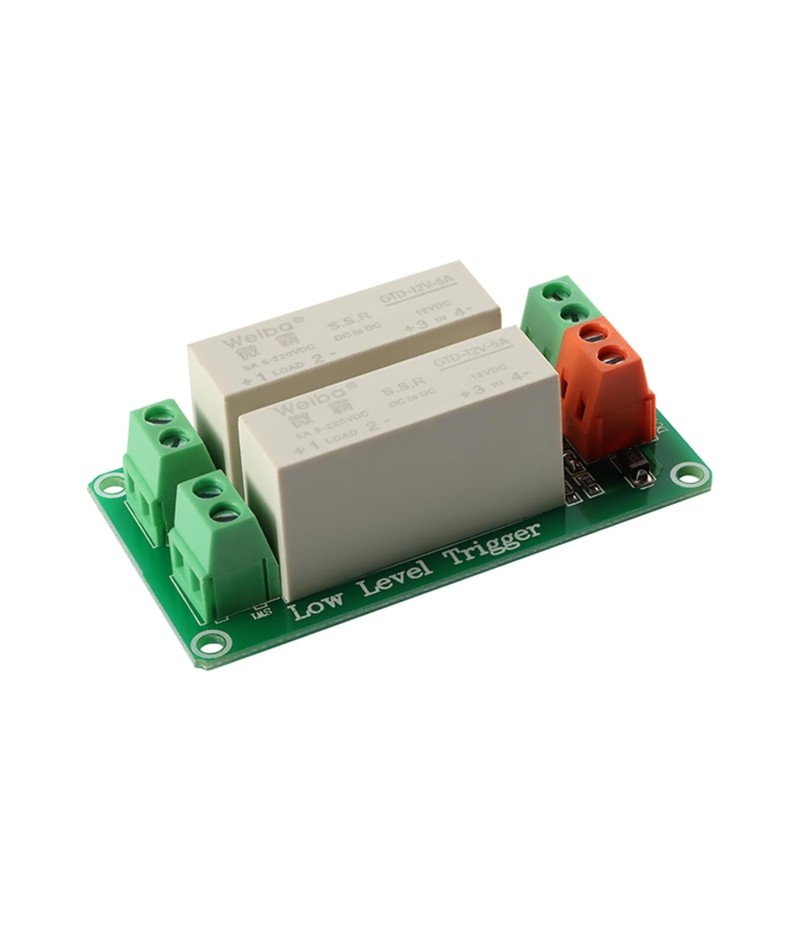

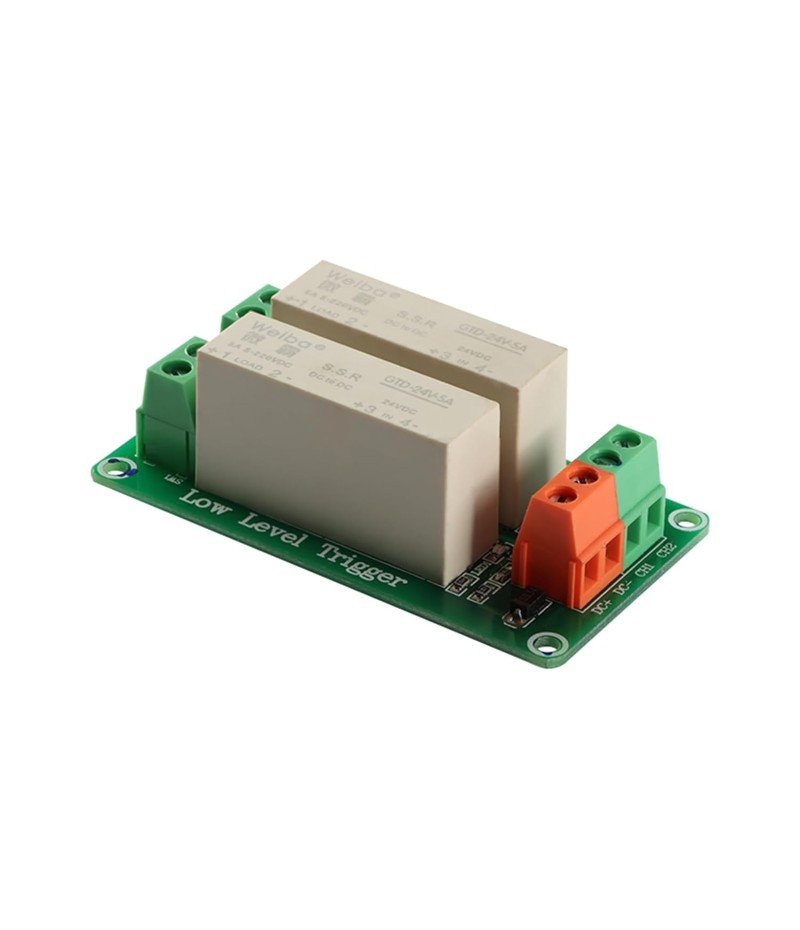

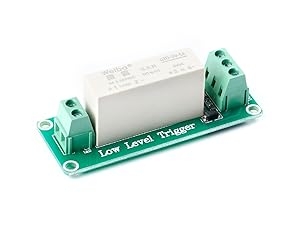

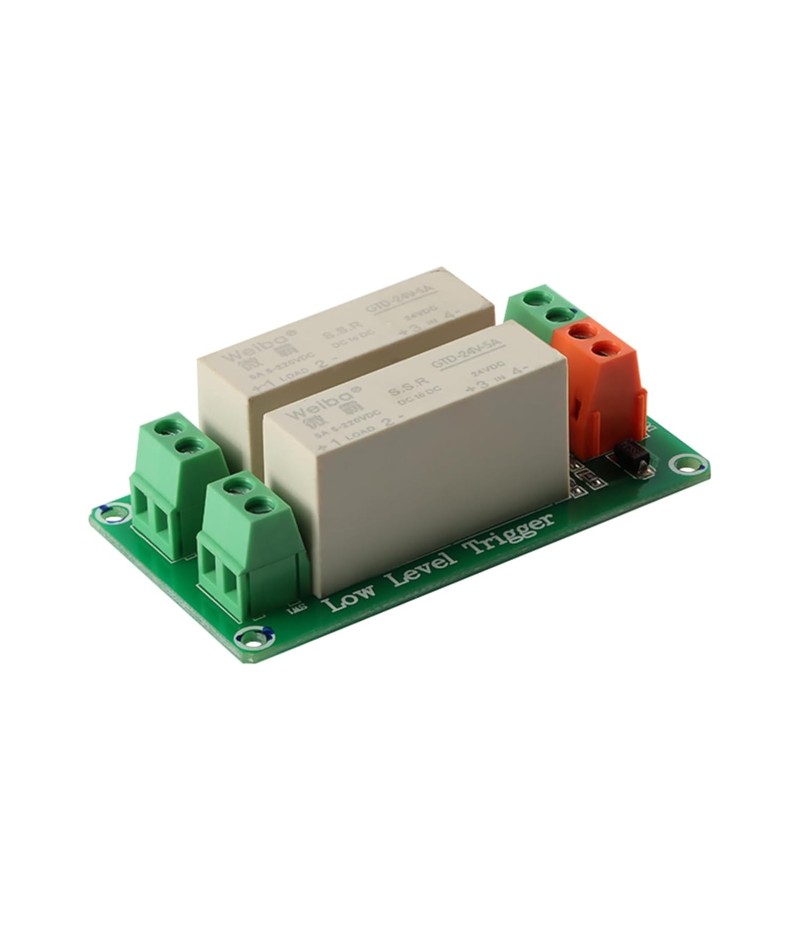

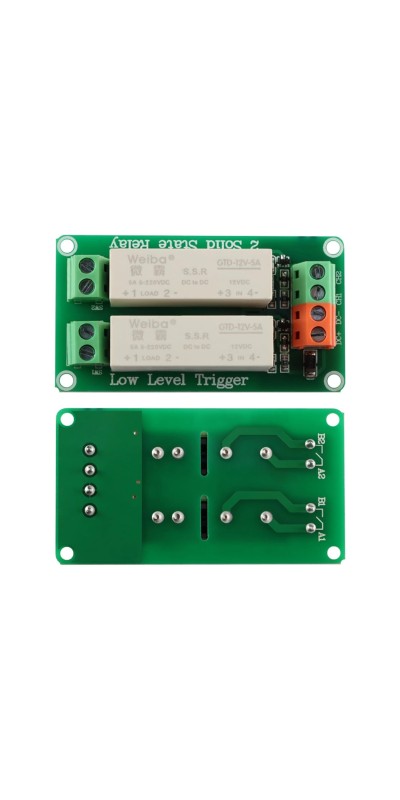

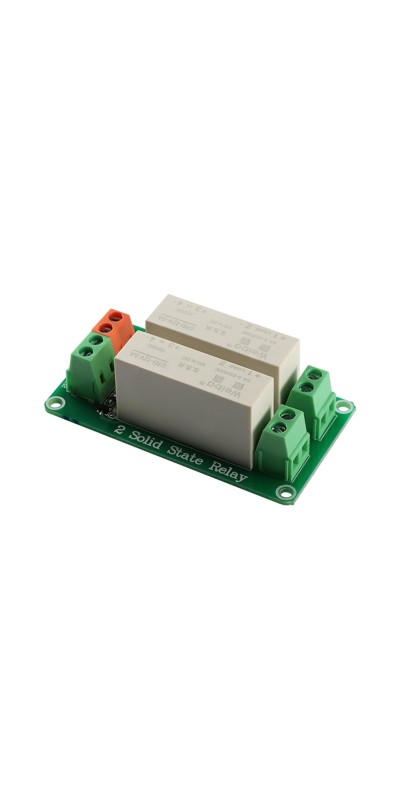

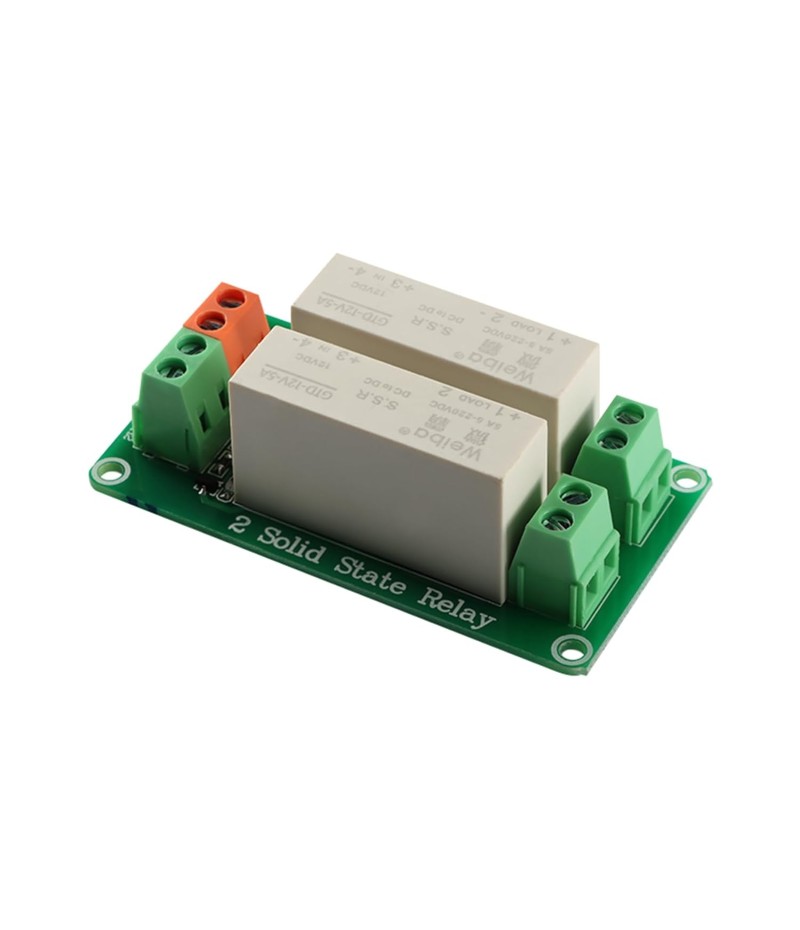

  • **Reliable DC Control for DIY Projects:** Perfectly compatible with Arduino and Raspberry Pi, this 5V 2 Channel Solid State Relay Module allows for seamless integration into home automation, robotics, and other DIY electronics projects.
  • **Low-Level Trigger for Efficient Operation:** Designed with a low-level trigger, this relay module ensures efficient control with a trigger current of over 2mA, providing stable performance for sensitive applications.
  • **High Load Capacity & Frequency:** Supports a load voltage range of 5-220VDC and a maximum load current of 5A, with a switching frequency of up to 5KHz, ideal for high-performance applications.
  • **Enhanced Safety & Protection:** Features built-in diode protection and is designed to operate within specified voltage ranges, ensuring longevity and reliability in various environmental conditions.
  • **Easy Installation & Use:** With clear pin descriptions and straightforward installation, this relay module is user-friendly, catering to both beginners and experienced hobbyists looking for a dependable automation solution.


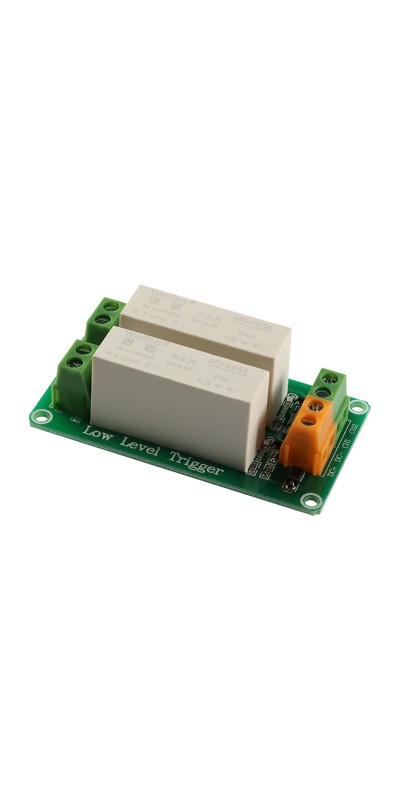

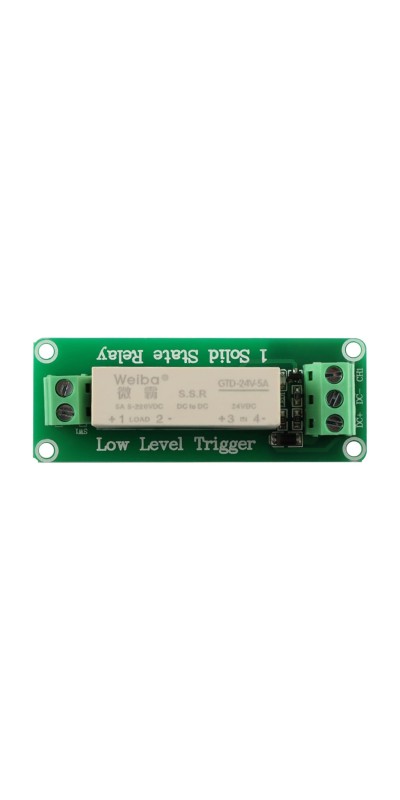

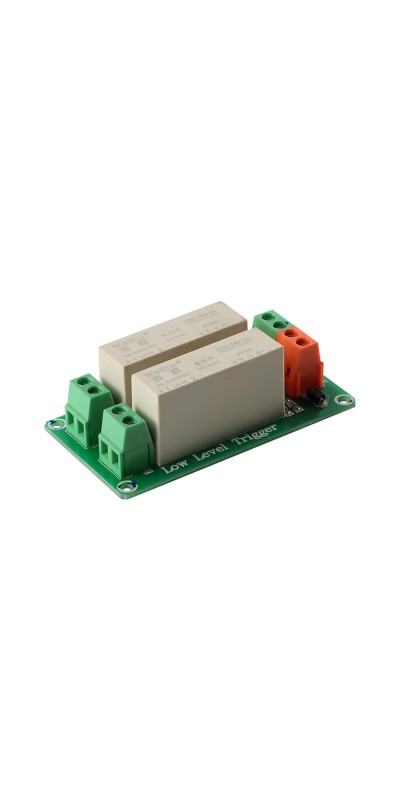

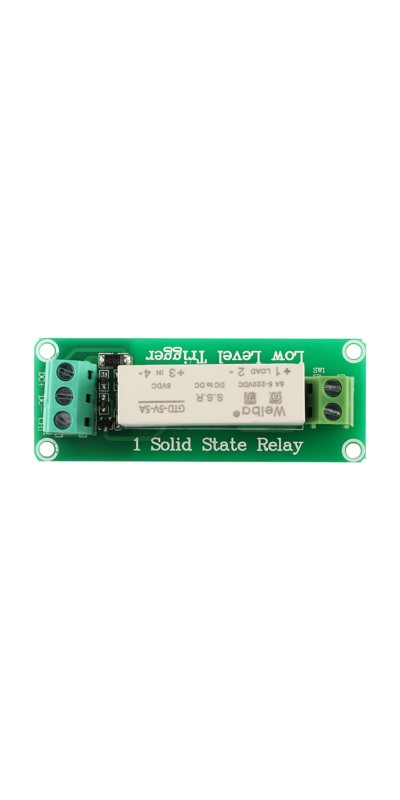

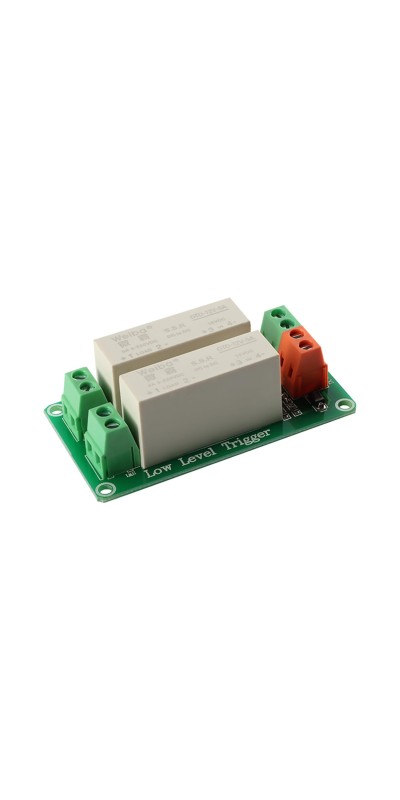

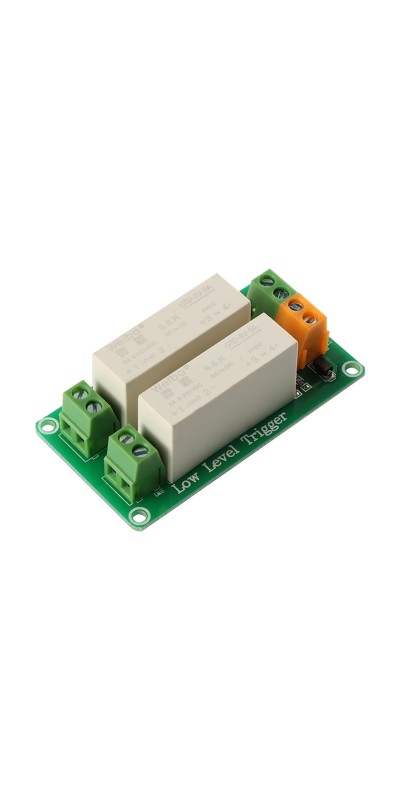

Product description

JESSNIE
JESSNIE

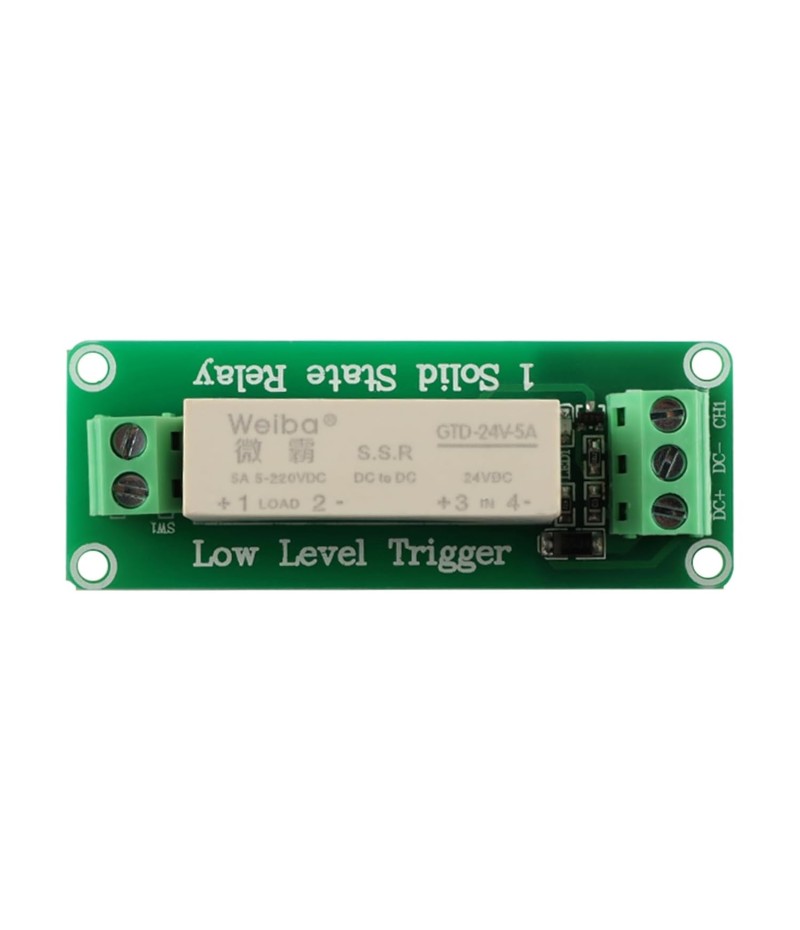

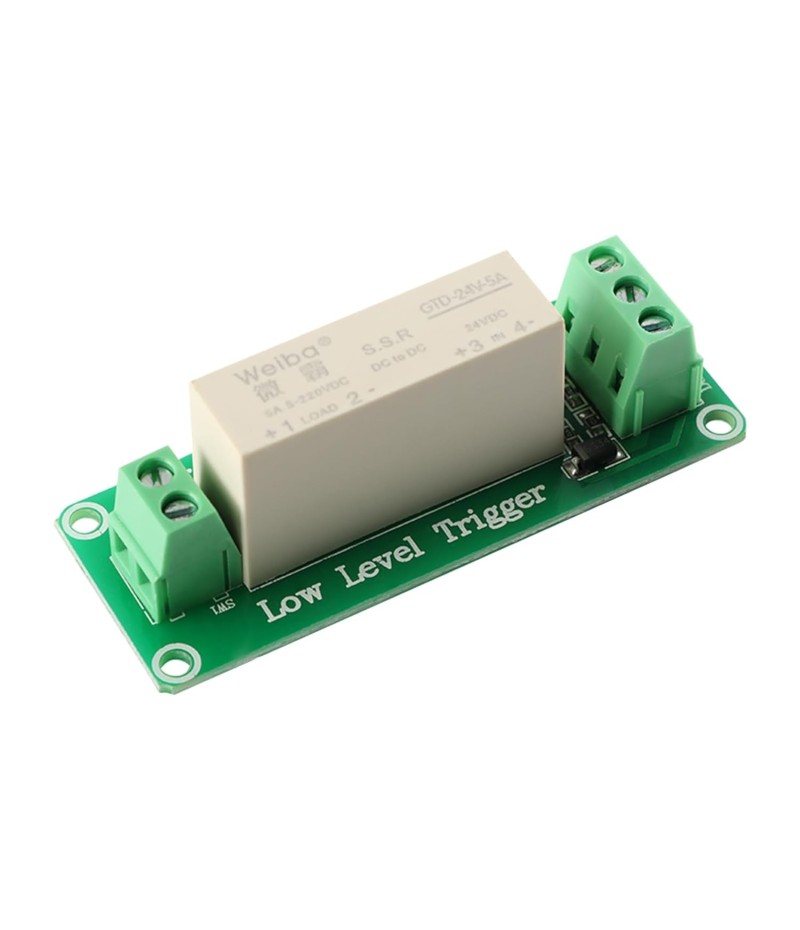

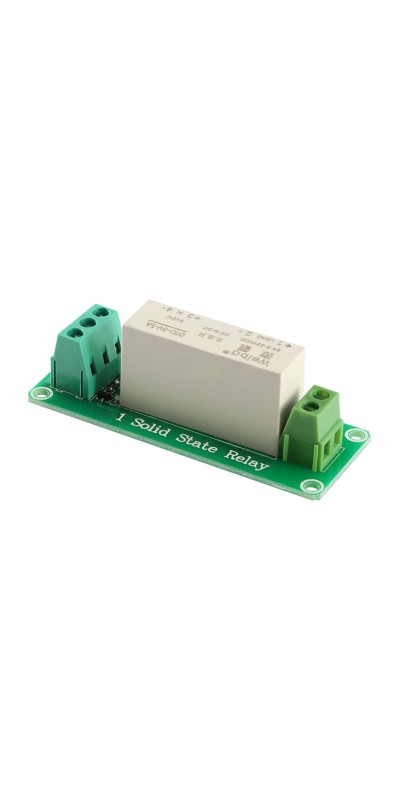

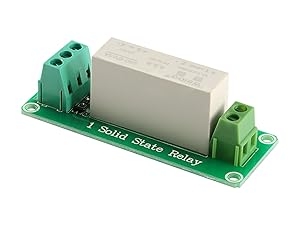

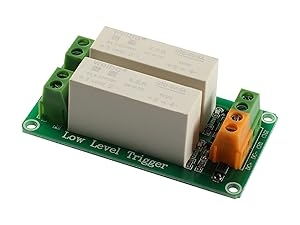

Trigger voltage

  • 5V low level trigger module: 0-1. 5VDC relay is turned on (ON), 3-5VDC Relay off (OFF)
  • 12V low level trigger module: 0-4. 5VDC relay on (ON), 5. 5-12VDC relay off (OFF)
  • 24V low level trigger module: 0-8. 5VDC relay connected (ON) 10-24VDC relay disconnected (OFF)

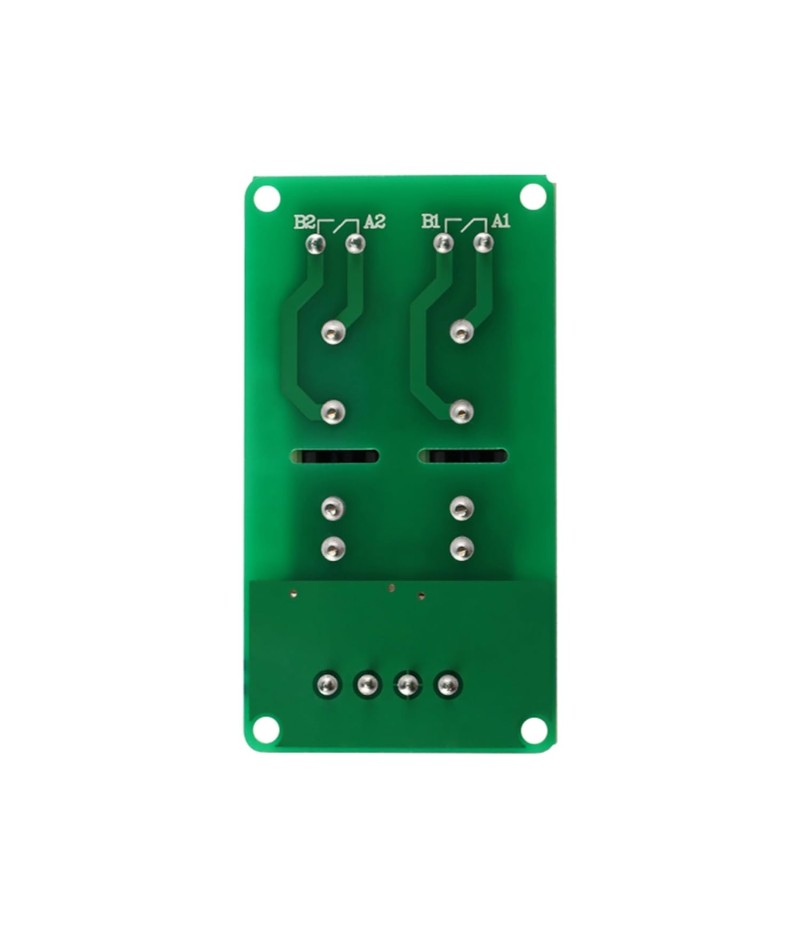

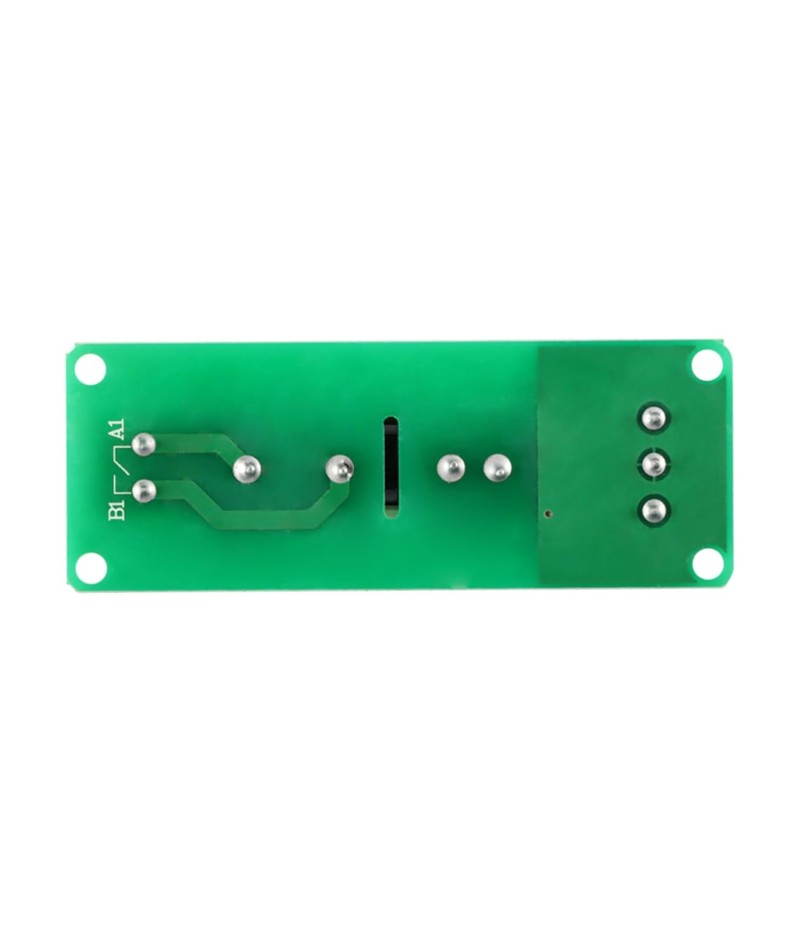

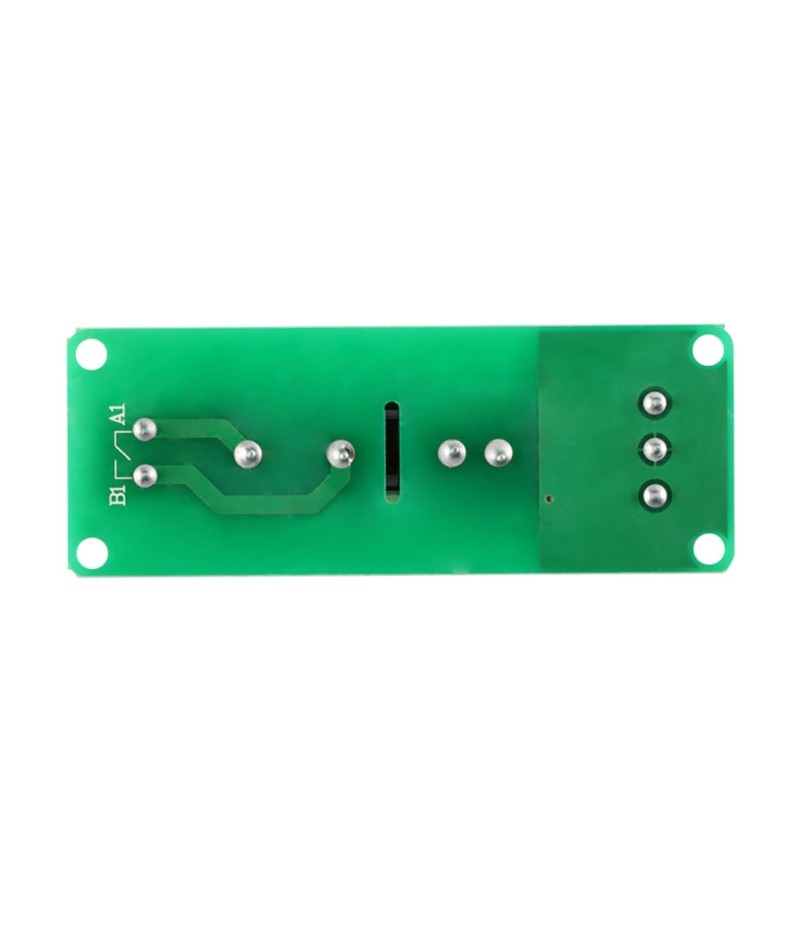

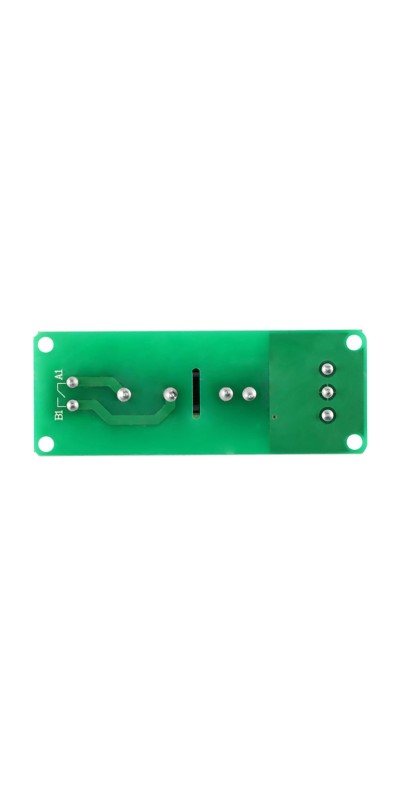

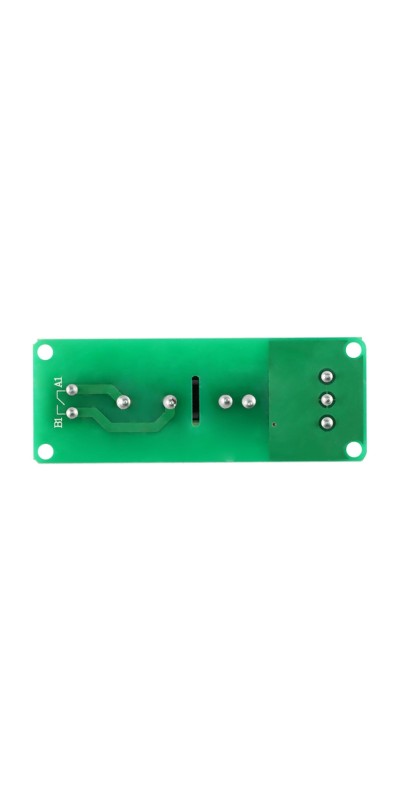

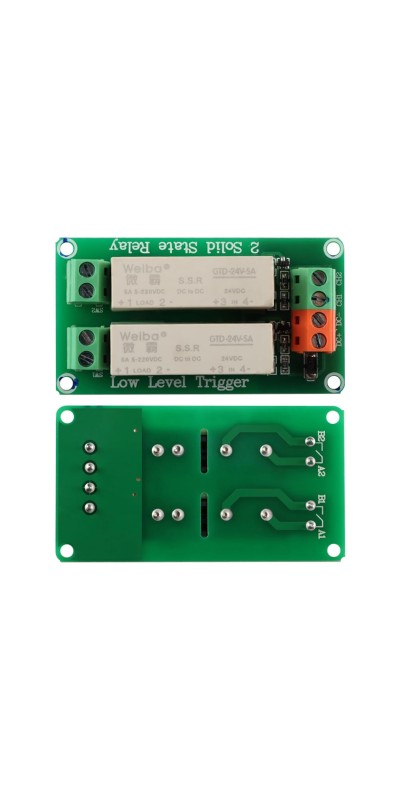

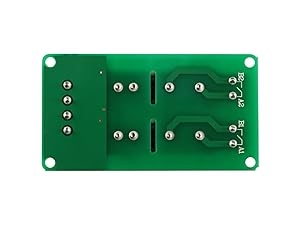

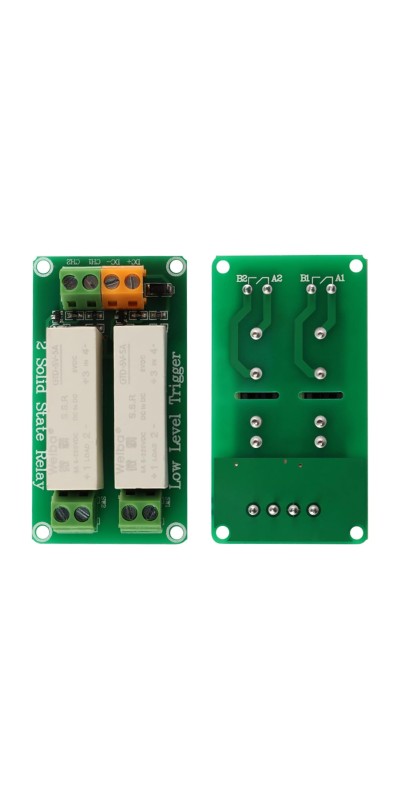

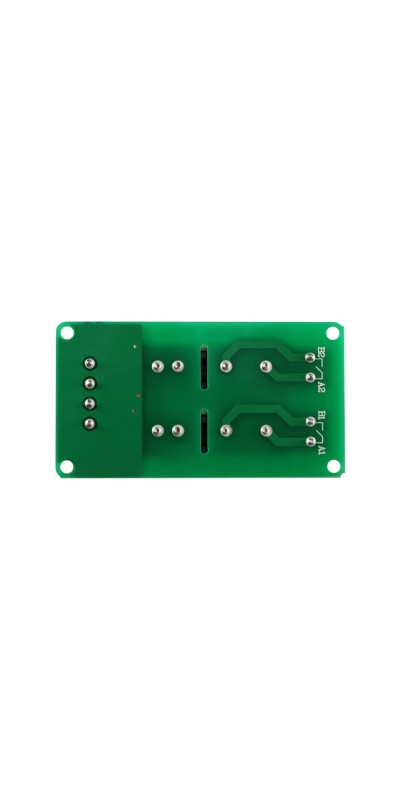

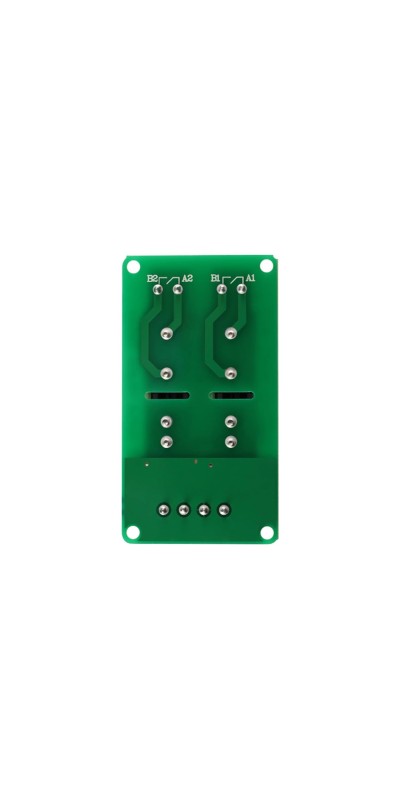

  • The relay is controlled by the terminal A and B port is just a switch.
  • It should be noted that the A port is connected to the positive pole of the power supply,and the B port is connected to the positive pole of the required equipment.If A and B are connected reversely, the relay will not be controlled!
  • Note:

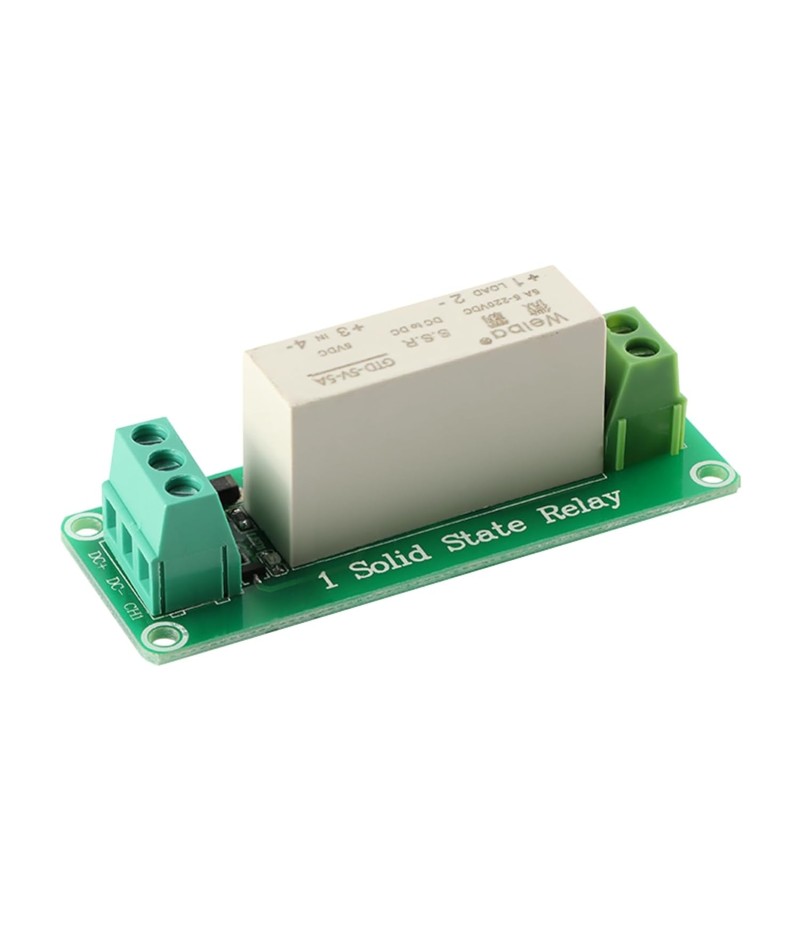

  • The CH terminal is the trigger terminal of the module.
  • When there is a trigger signal, the output switches (A, B) of the solid state relay will be closed,and the load will be turned on.

B0DLGNJYCF-90163

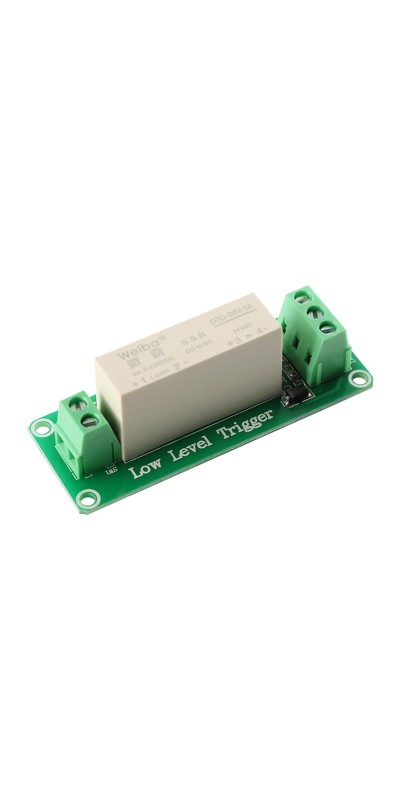

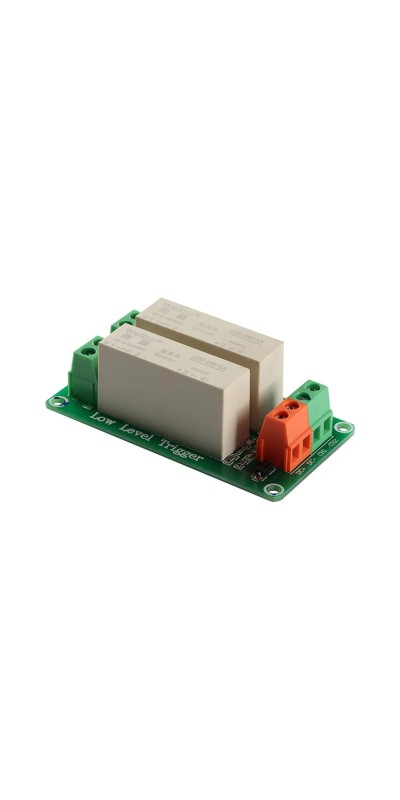

Trigger mode: low level trigger

Power supply voltage: 5V/12V/24V

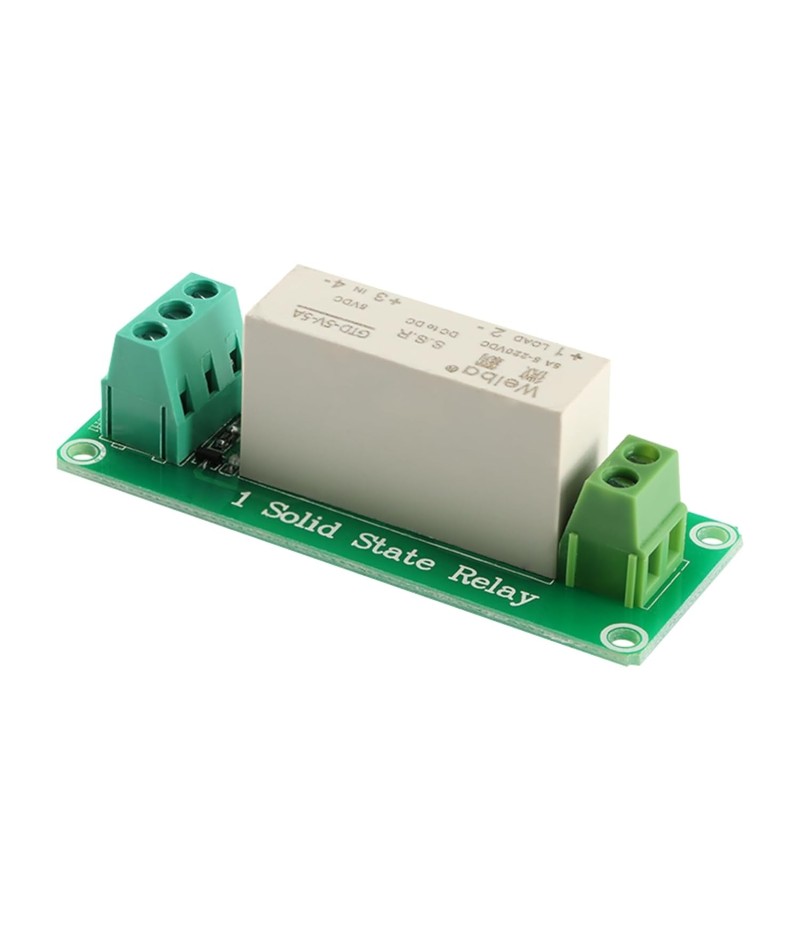

Maximum working current: 1 way 12.5mA/2 way 20.5mA

75051

Trigger current:> 2mA

  • Maximum switching frequency: ≤ 5KHz

75051

Quiescent current: 0mA

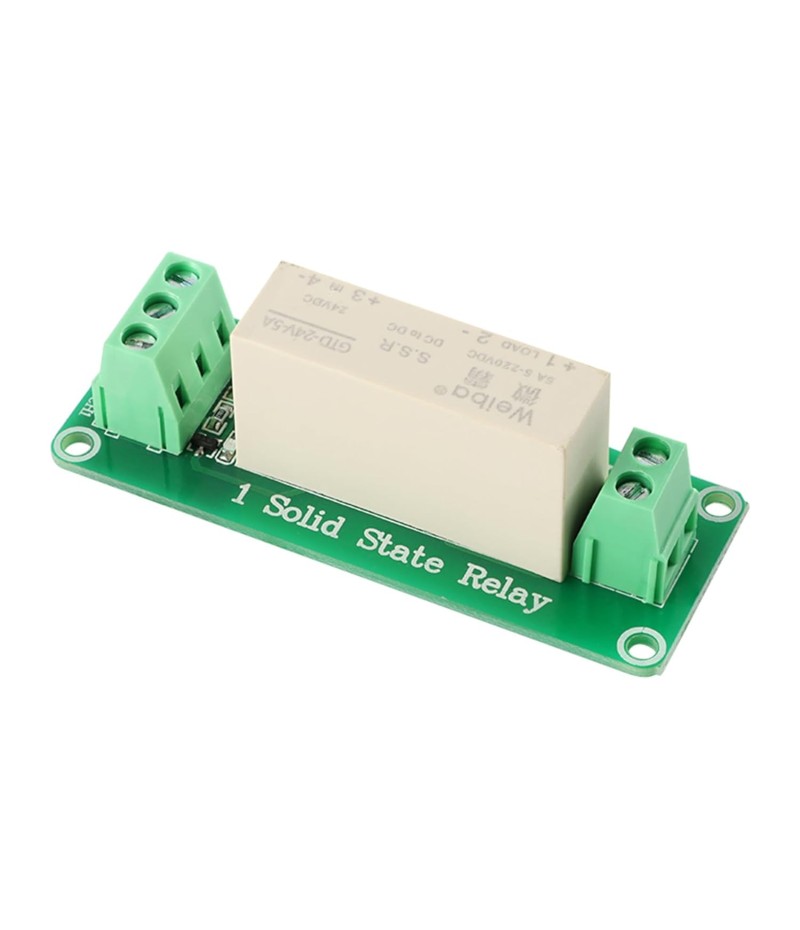

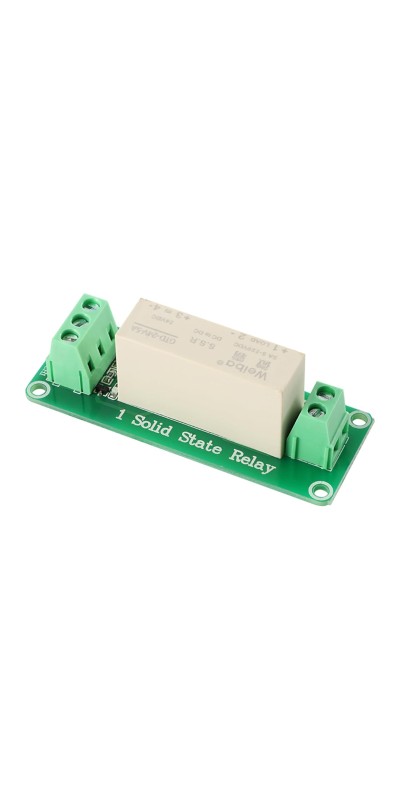

  • Product positioning hole: 1 way 24.5*69.5mm/2 way 36.5*69.5mm

B0F1CKG4Z2

Load voltage: 5-220VDC

  • Clear pin descriptions for easy installation

B0F1CKG4Z2

Load current: 5A

  • Secure relay control with A and B port connections
  • Versatile module with up to four trigger signal terminals (CH1-CH4)

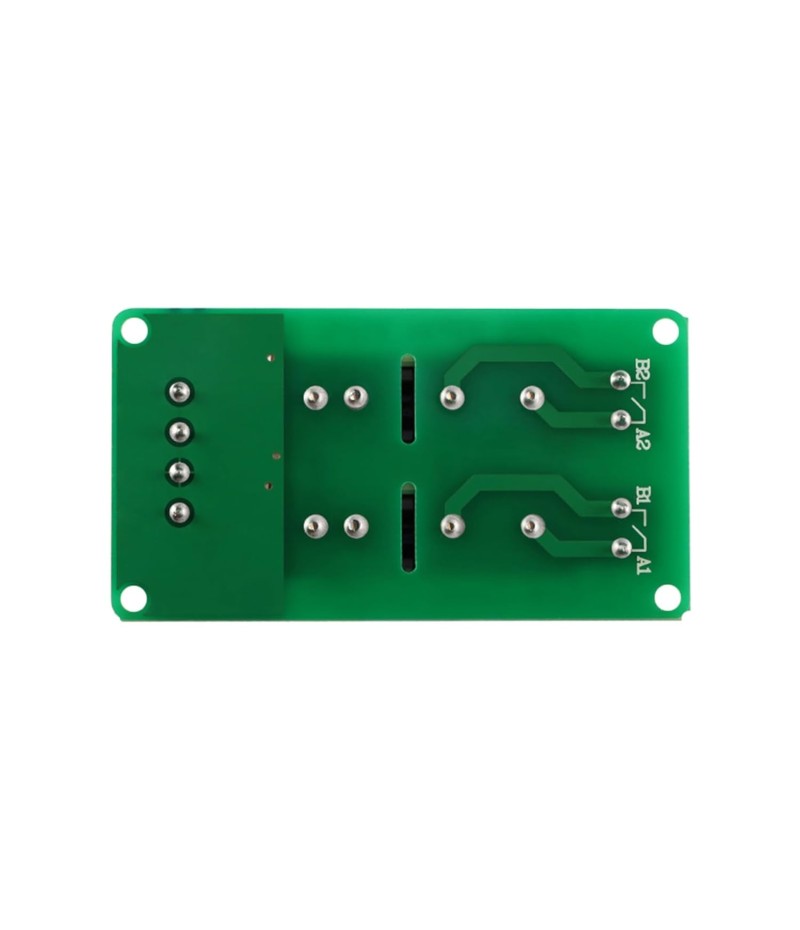

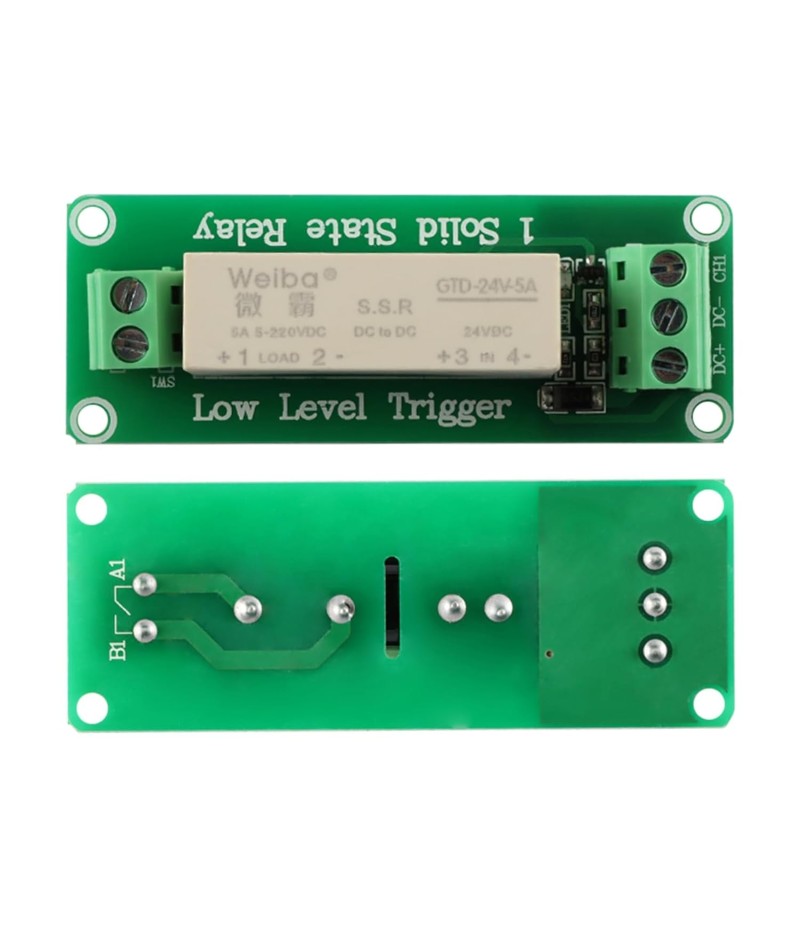

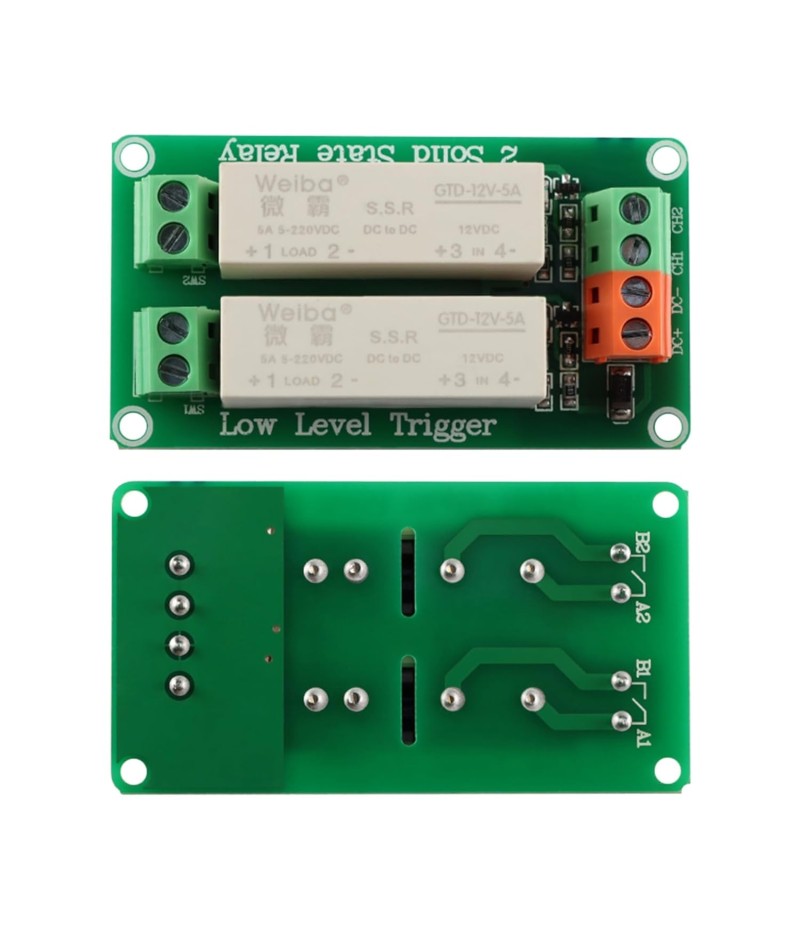

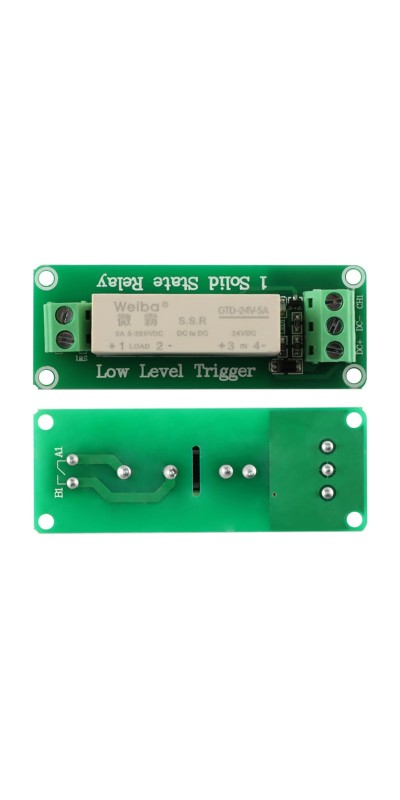

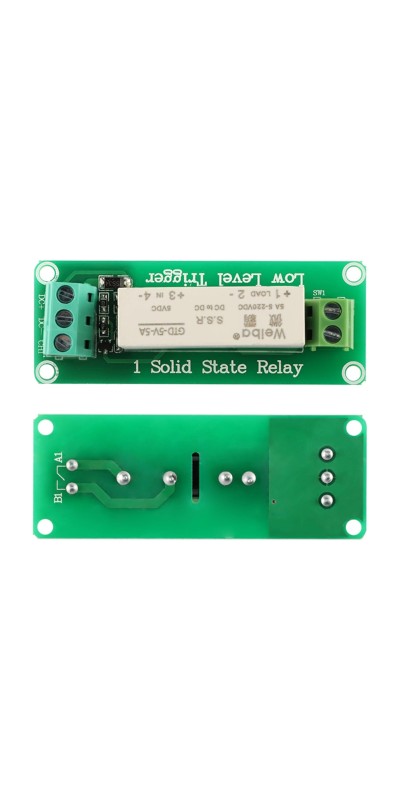

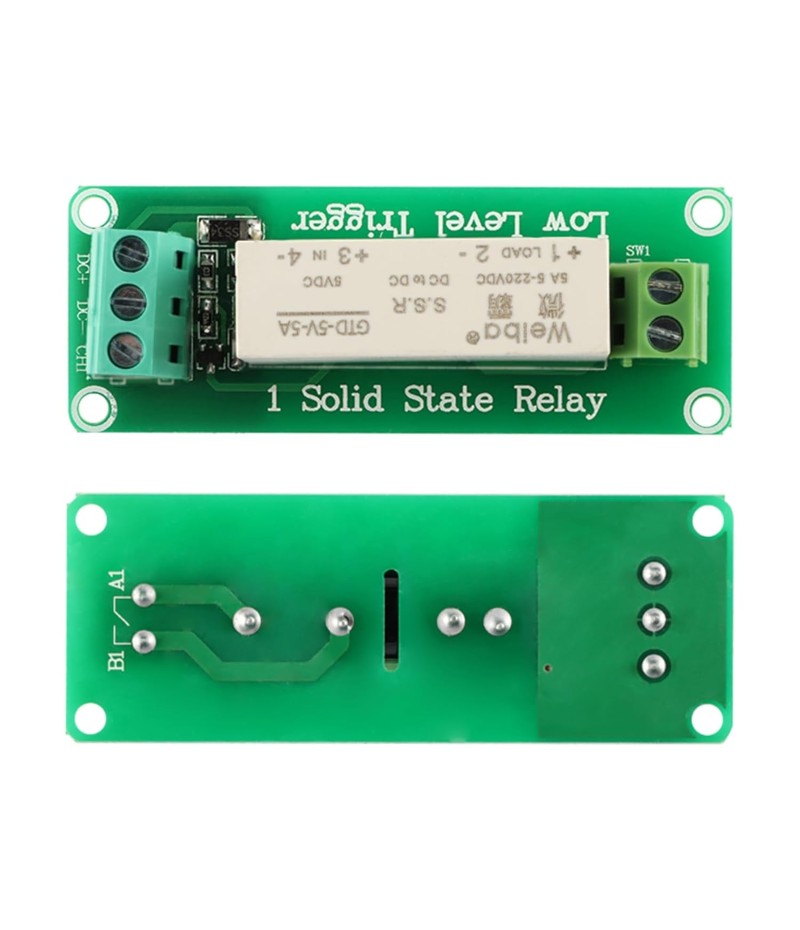

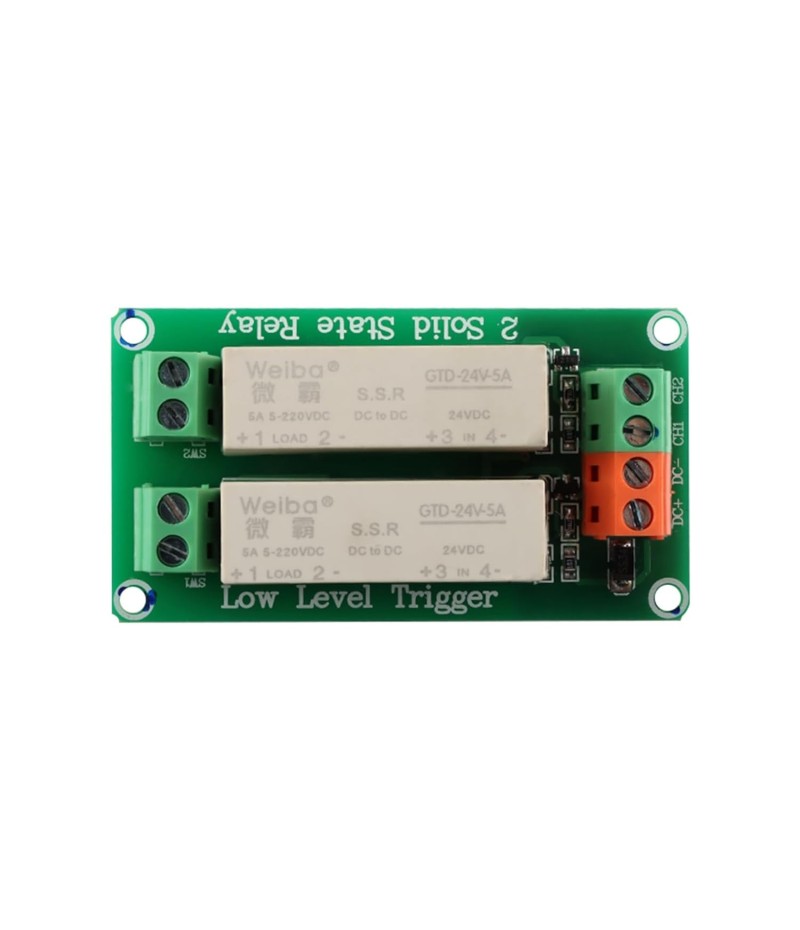

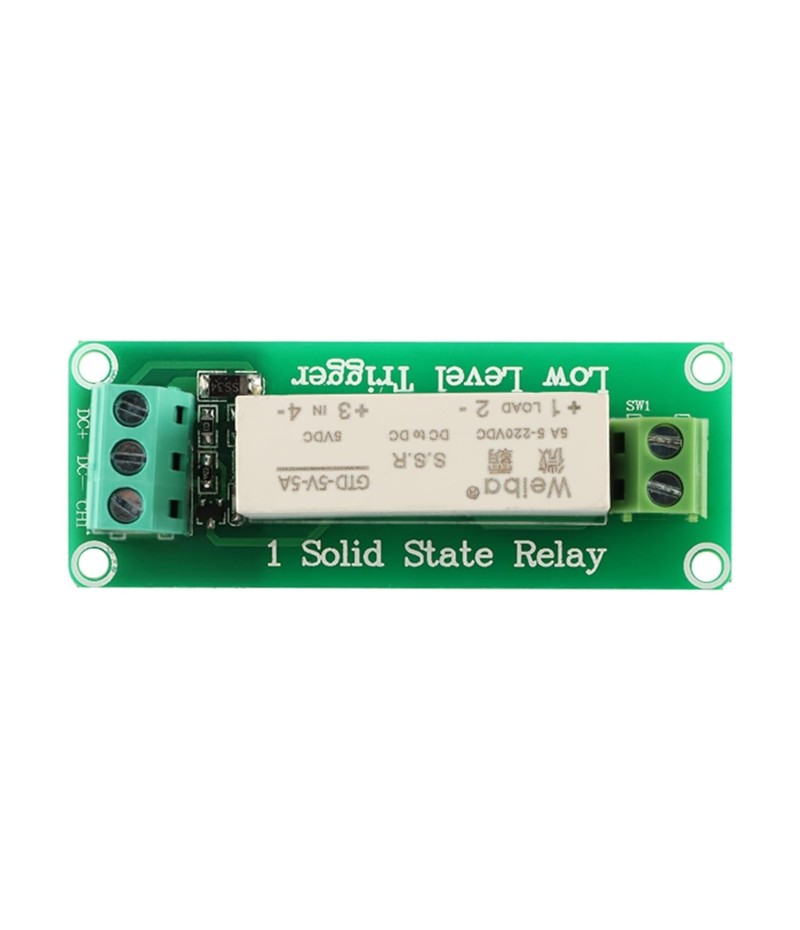

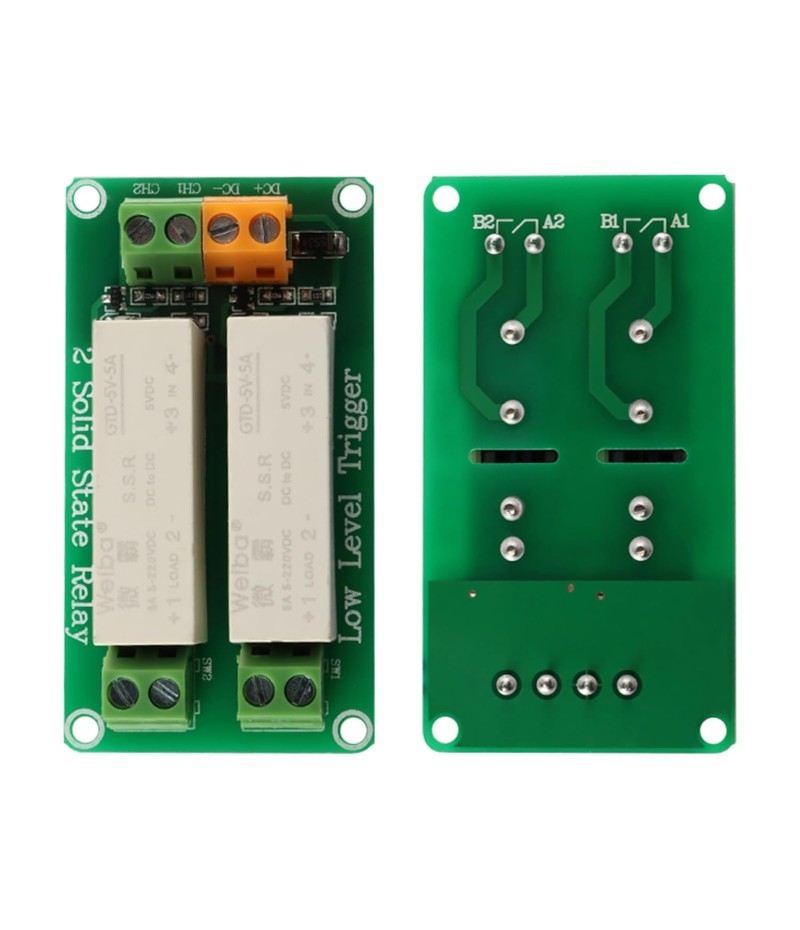

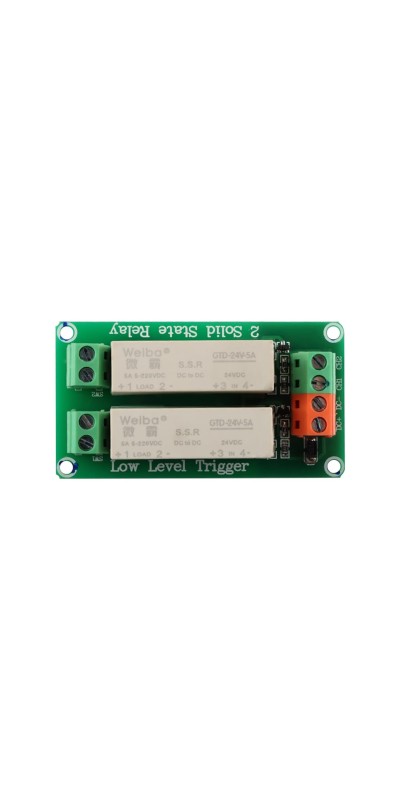

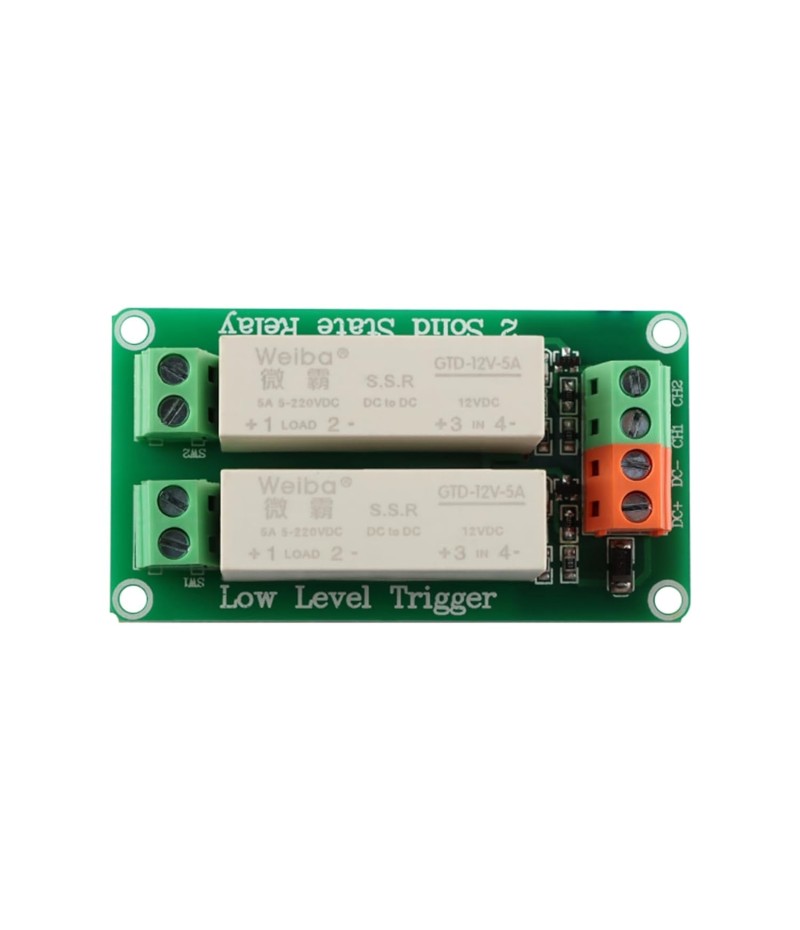

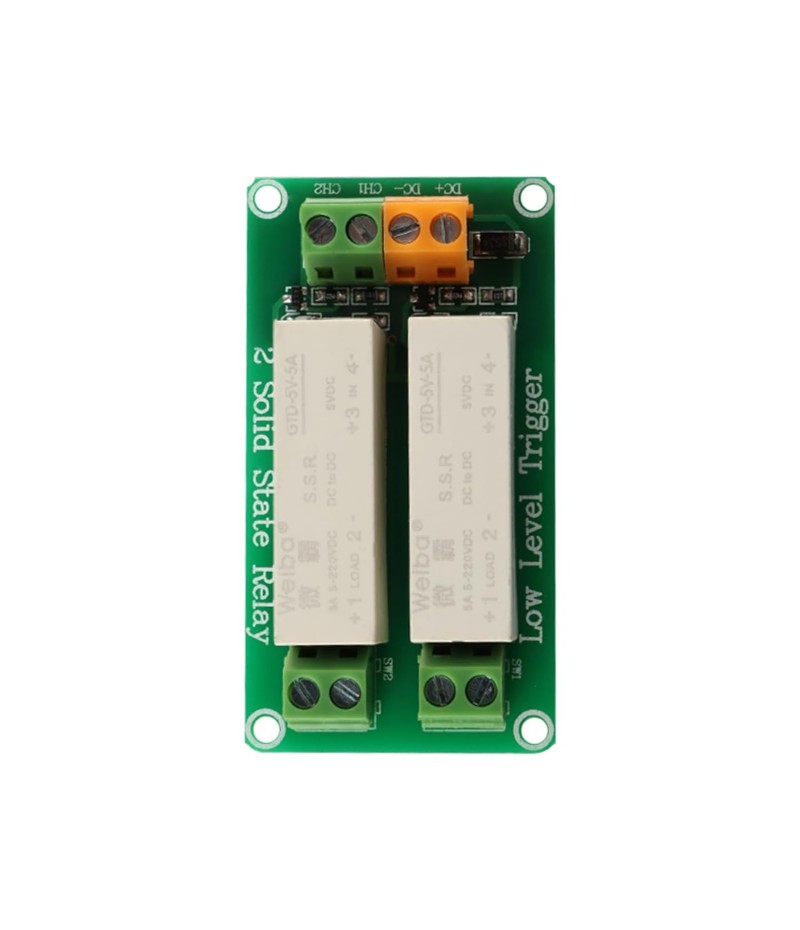

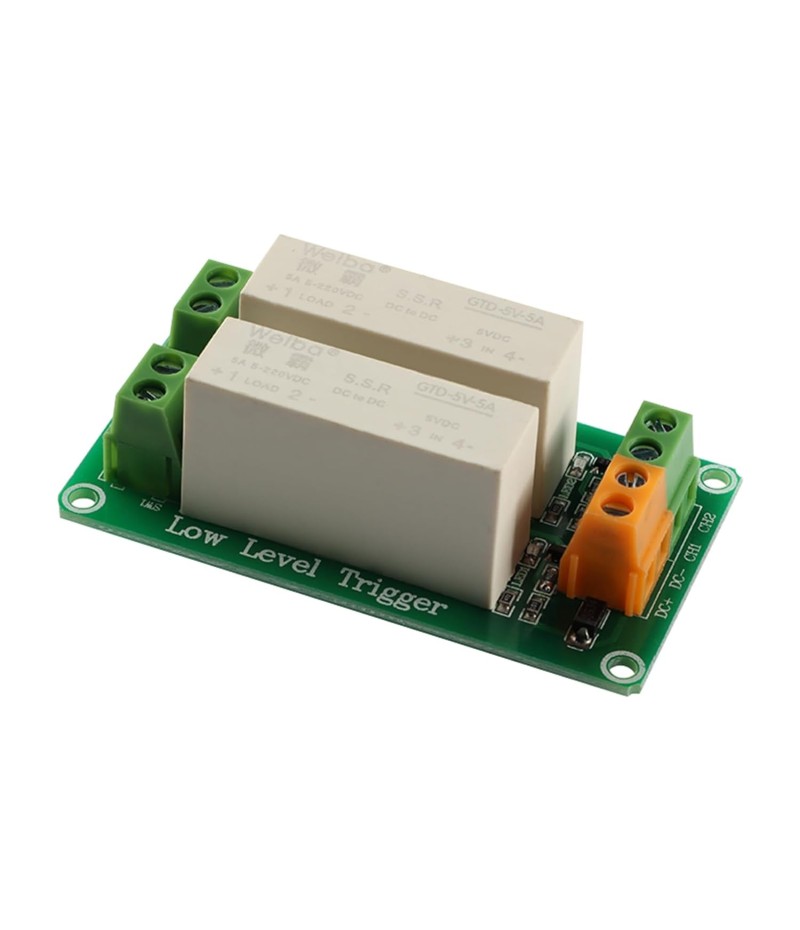

Pin description

DC+: positive supply voltage
DC-: negative supply voltage
CH1: The first trigger signal terminal
CH2: The second trigger signal terminal
CH3: The third trigger signal terminal
CH4: The fourth trigger signal terminal
General
Date First Available ‏ ‎ March 13, 2025
Manufacturer ‏ ‎ JESSINIE
ASIN ‏ ‎ B0F1C89GJ2
Product Dimensions ‏ ‎ 3.15 x 1.18 x 0.47 inches; 2.12 ounces
Item model number ‏ ‎ 75054JE
