- Powerful Spec - The lab oscilloscope is with 150MHz bandwidth; 8M memory depth; 1 GSa/s real-time sampling rate and Vertical resolution: 8bit， 2 channels which are respectively controlled by independent knobs;
- AWG Supports - The hantek oscilloscope Built-in 1 channel 25MHz waveform generator,support arbitrary waveform burst output, support modulation waveform output;
- Multi-function - 32 kinds of auto measurements with statistics, real-time statistics of maximum, minimum, standard deviation and etc.，Can save multiple data formats, such as settings, waveforms, reference waveforms, CSV, pictures, BUS decode and protocol analysis: RS232/UART, I2C, SPI, CAN, LIN;Support threshold testing, free measurements within the screen;
- Large TFT LCD Display - 7-inch 64K true color TFT LCD display with a resolution of 800 * 480. Remote Control and U Disk Storage: This oscilloscope can store more than 1000 waveforms information, and can upgrade the system through the USB port, support plug-and-play USB storage devices and communicate with the computer and remote control through USB.
- Excellent Fullfillment - The stock for this bench oscilloscope is in Amazon USA warehouse, and the delievery is handled by Amazon fullfillment directly,which is safe and efficient; If you have any questions about our product and service, please feel free to contact our after-sales customer service at any time, we will solve it for you with soonest.
Product description

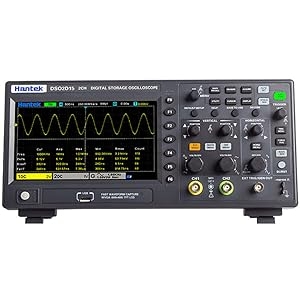

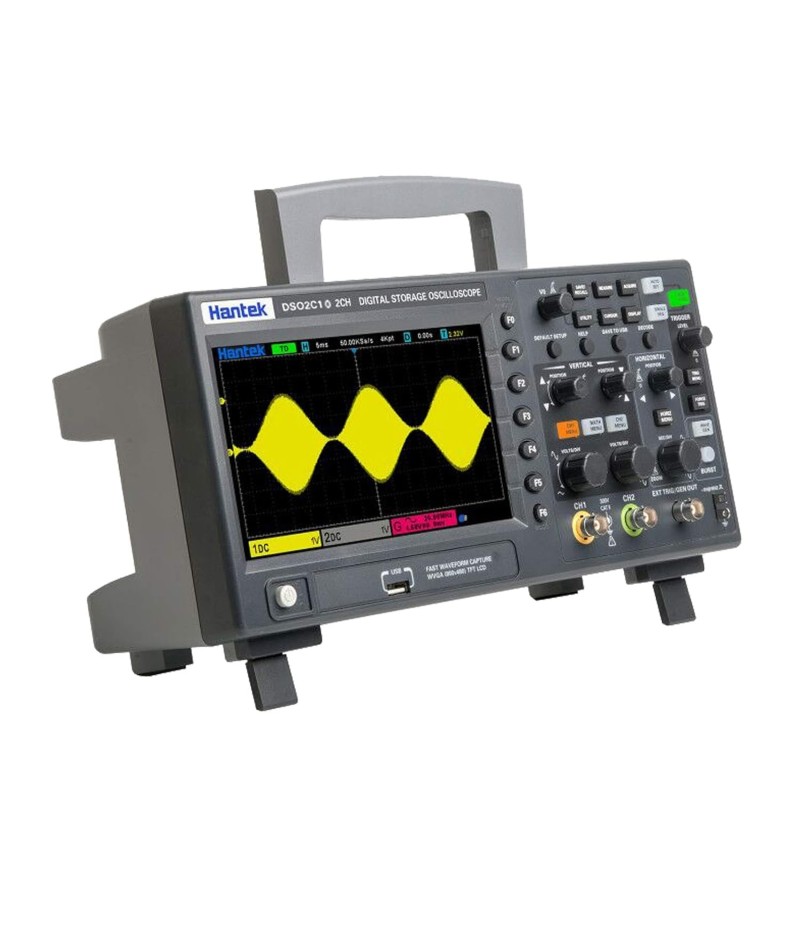

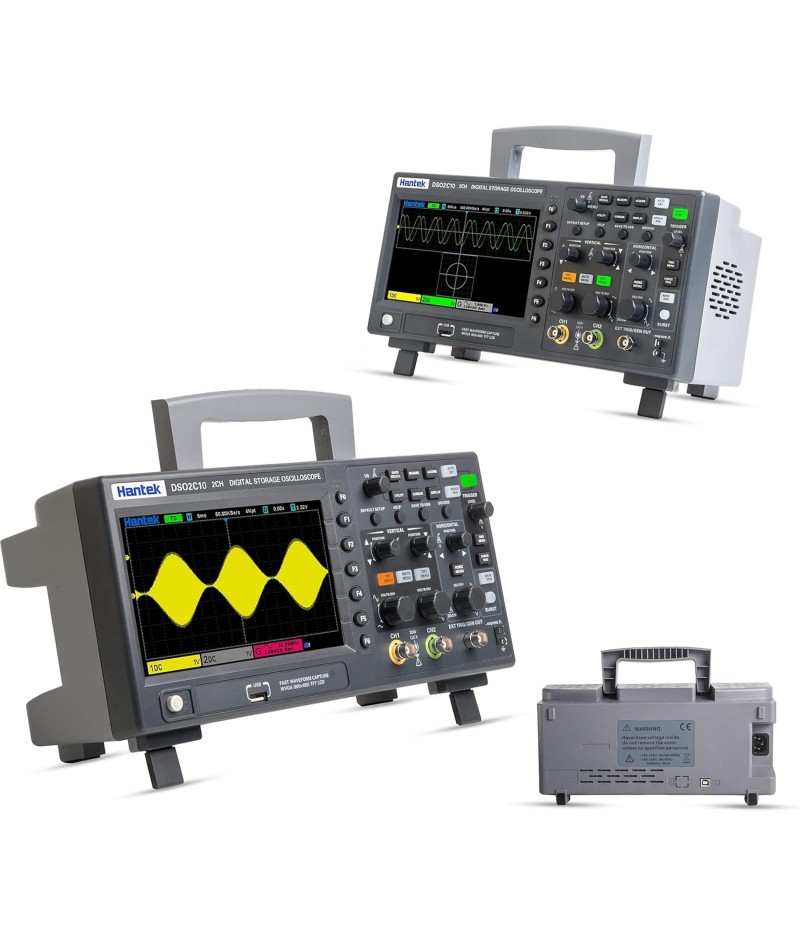

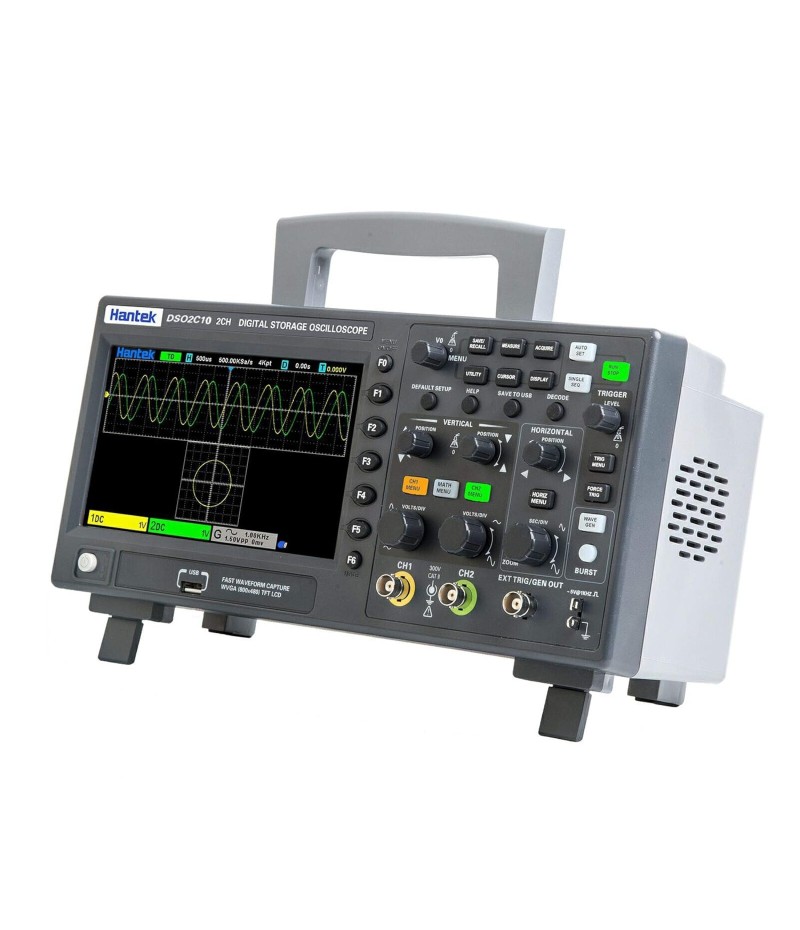

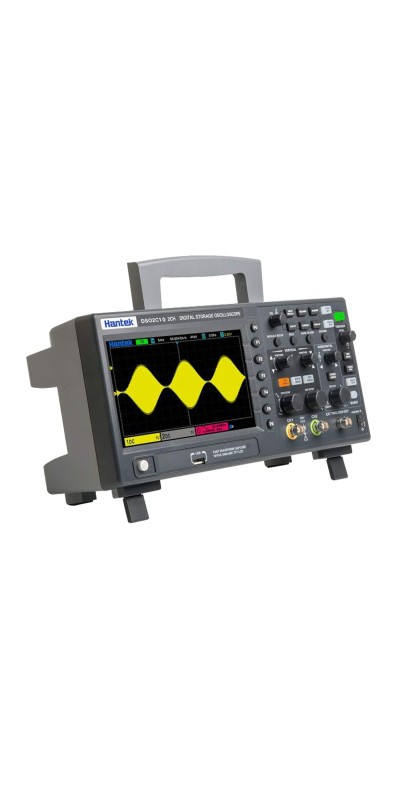

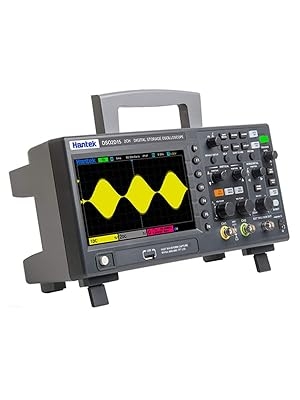

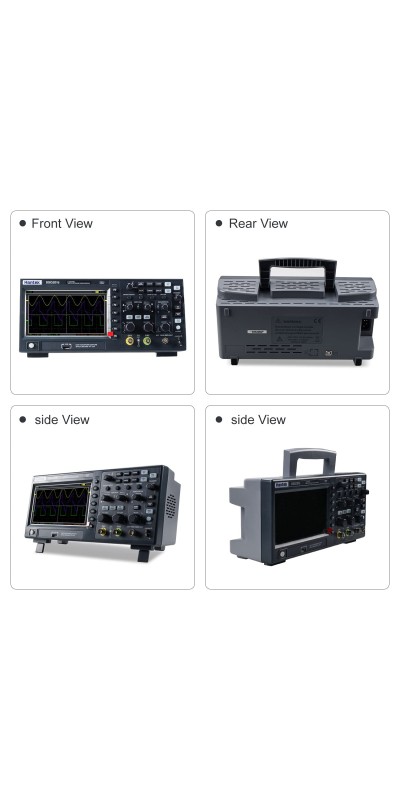

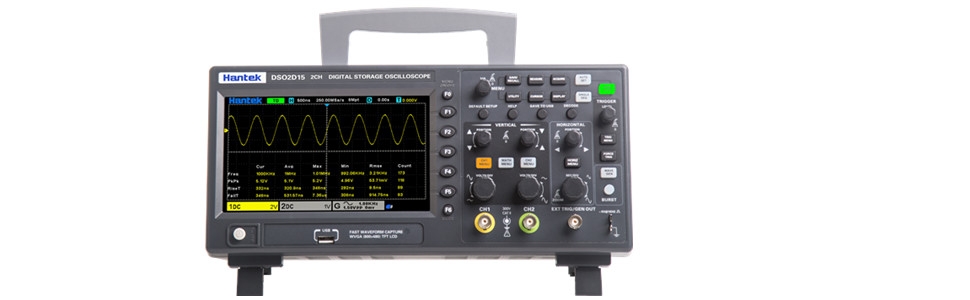

Bench Digital Oscilloscope
Model Name: DSO2D15
Applications
- Electronic circuit design and debugging
- Electrical circuit function test.
- Inspect instantaneous signal.
- Industrial control and measuring.
- Products quality control.
- Education and training
Key Features
Cost-effective And Economical Oscilloscope
- 150MHz Bandwidth;
- 1 Built-in 25MHz signal source channel;
- 2 Input signal channel(CH1,CH2);
- Up to 1GSa/s sampling rate;
- 8Mpts memory depth;
- 7-inch TFT LCD screen, 800 * 480 pixels, 16 million display colors (24bit true colors);
- 5-digit digital voltmeter and 6-digit hardware frequency counter functions;
- Setting, waveform, reference waveforms, CSV, pictures and other data formats record function;
- Supports SCPI programming command control;
- Support 32 kinds automatic measurement and statistics functions.
- Color: Black

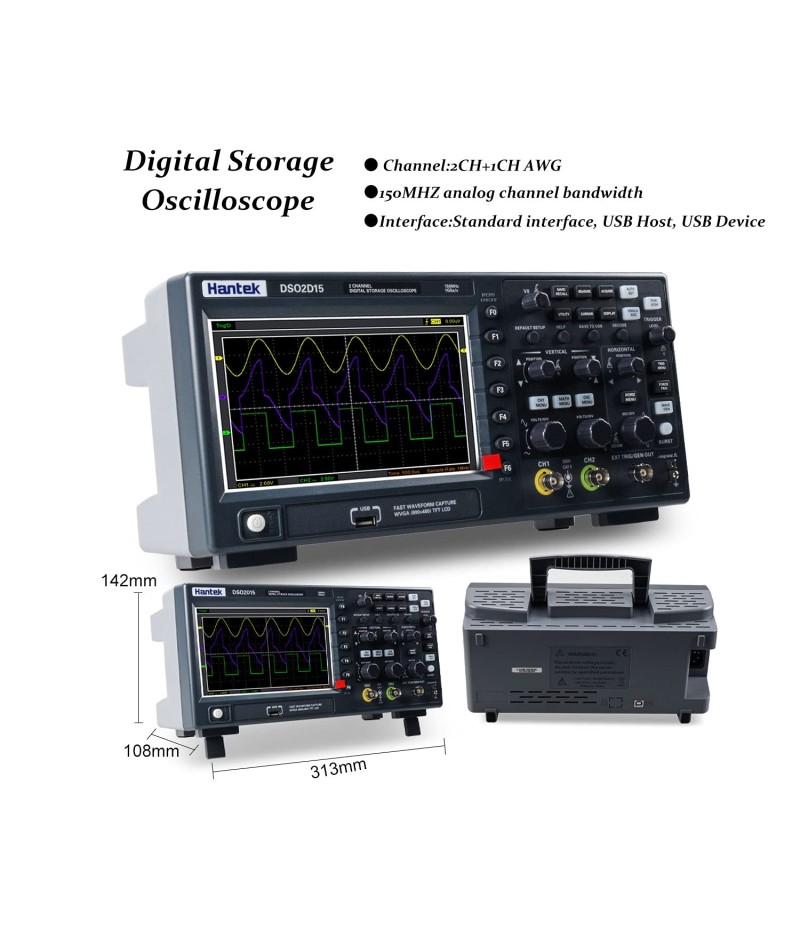

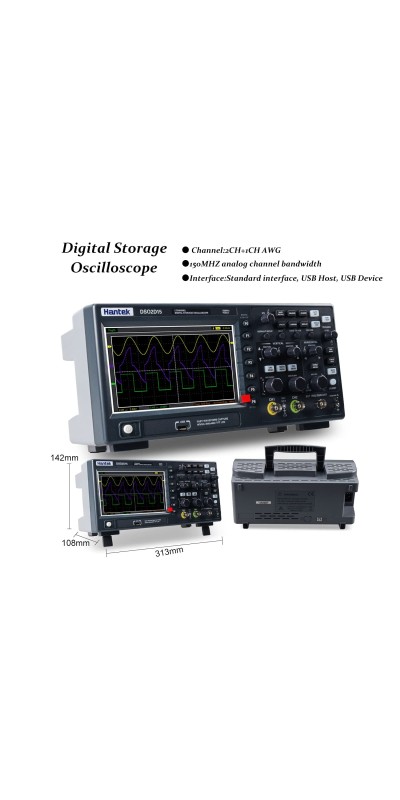

- Dimension: 318 * 150 * 140mm / 12.5 * 5.9 * 5.5in
- Net Weight: 2900g / 6.4lb

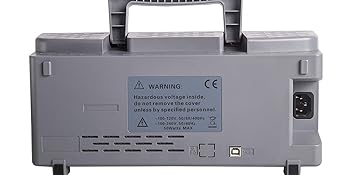

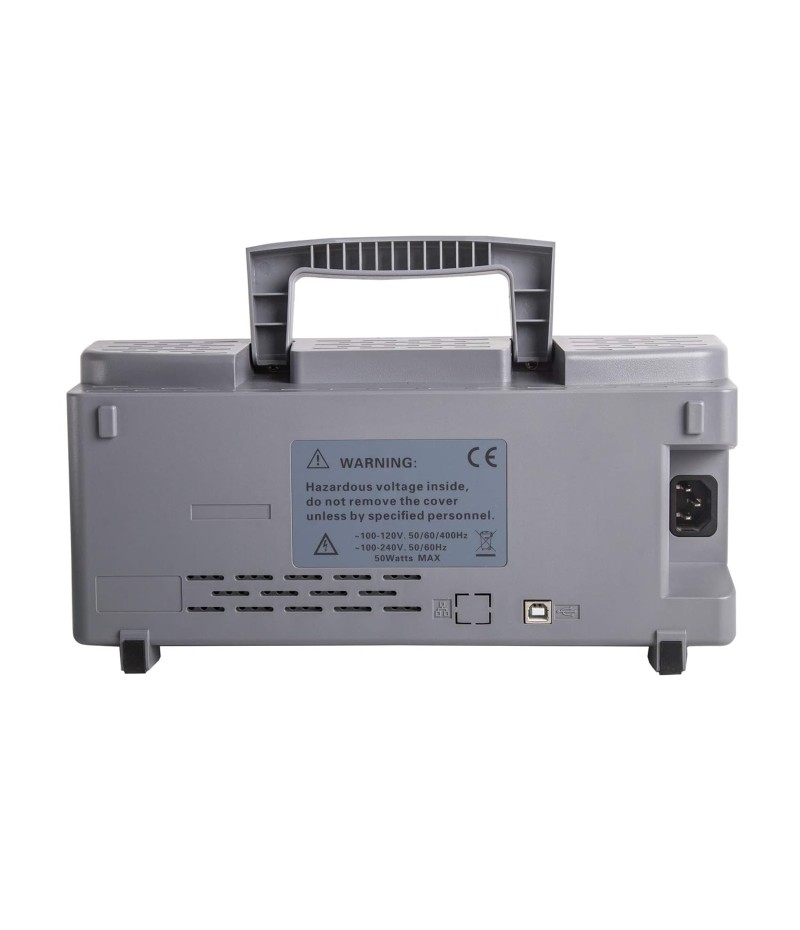

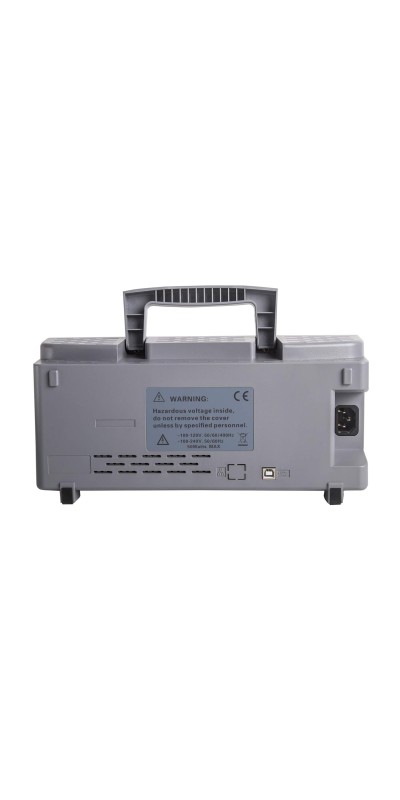

- Interface: USB Host/Device

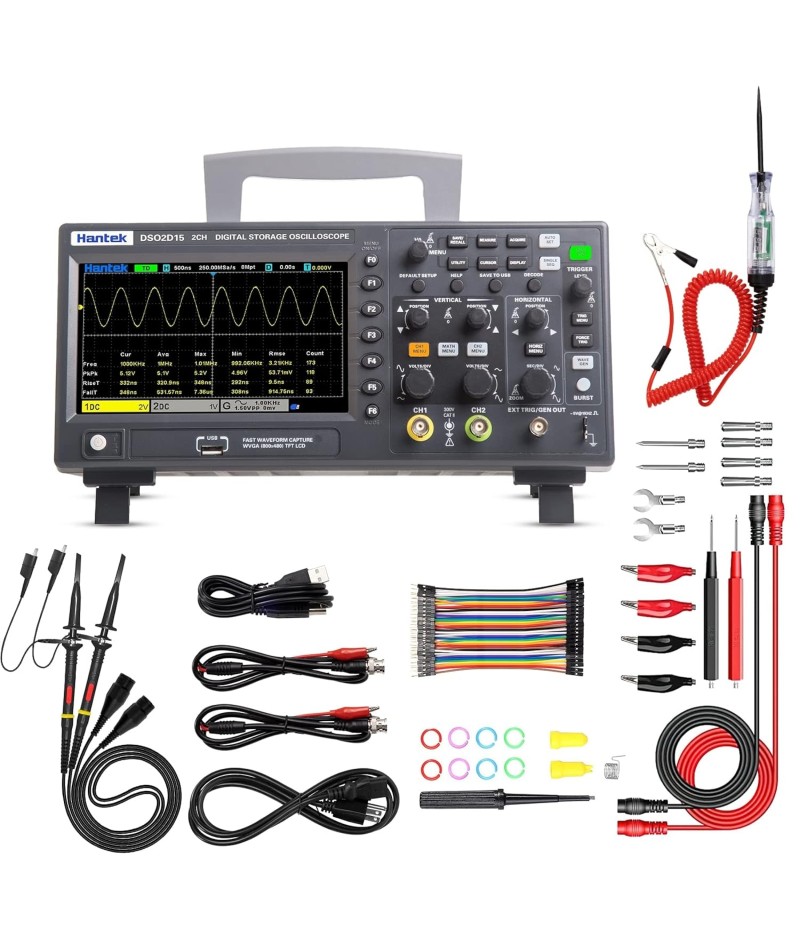

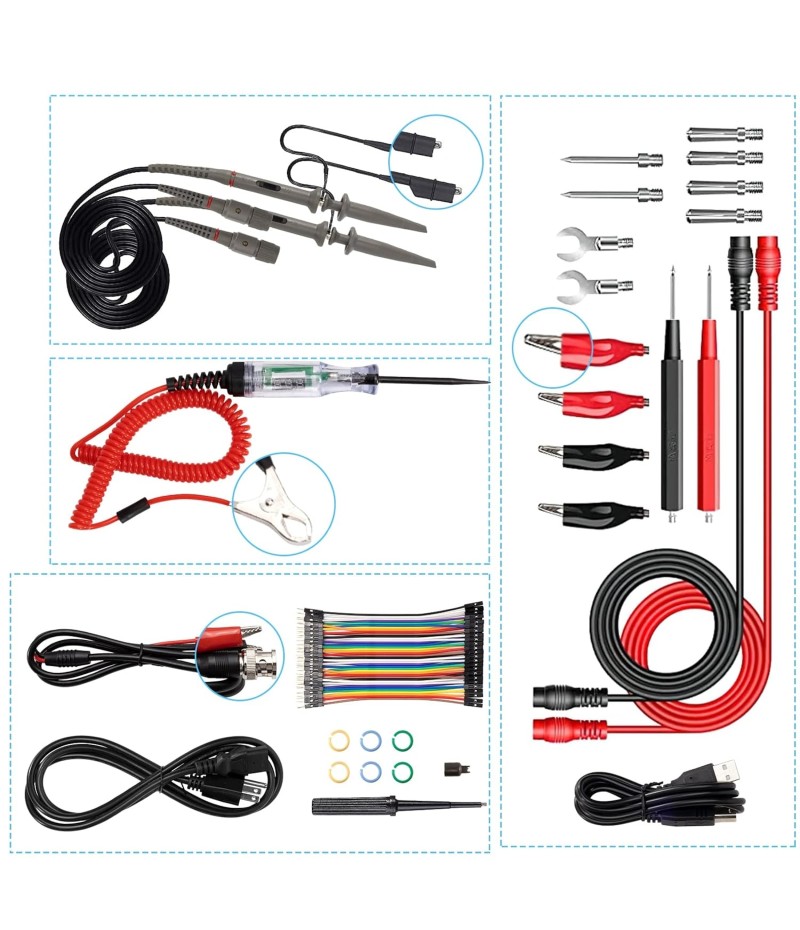

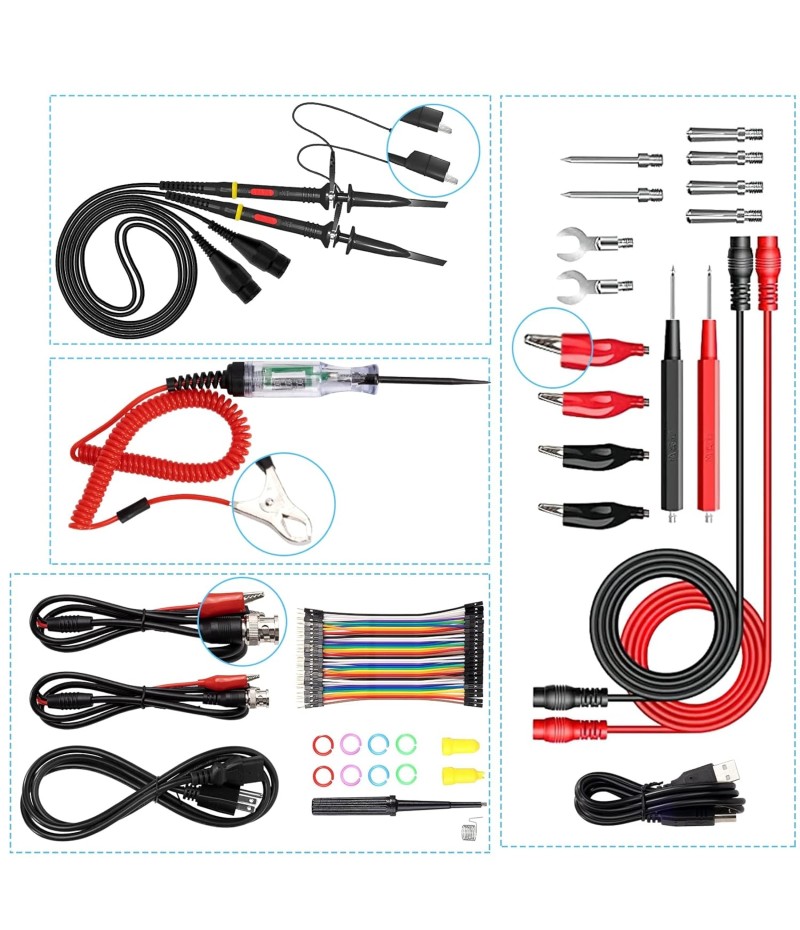

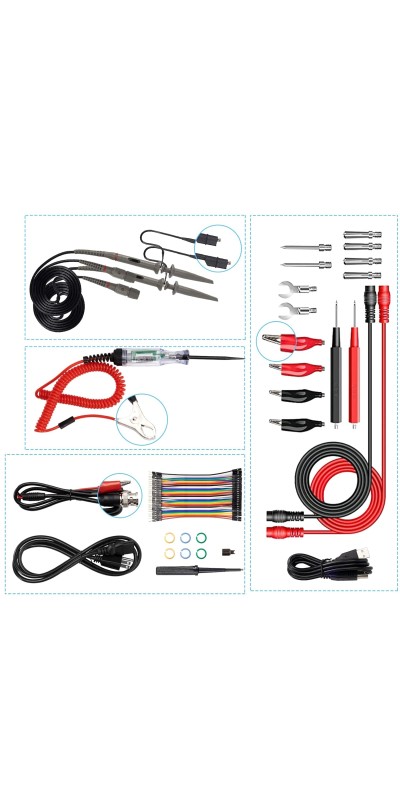

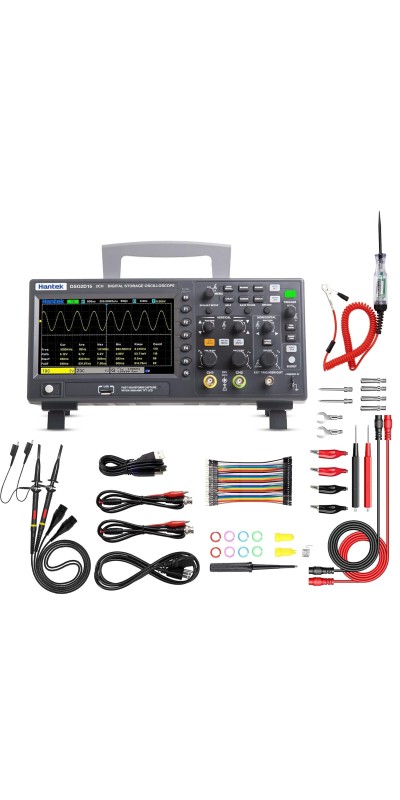

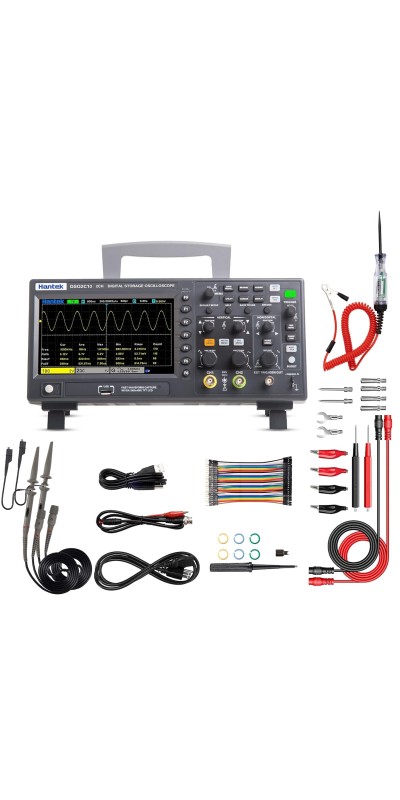

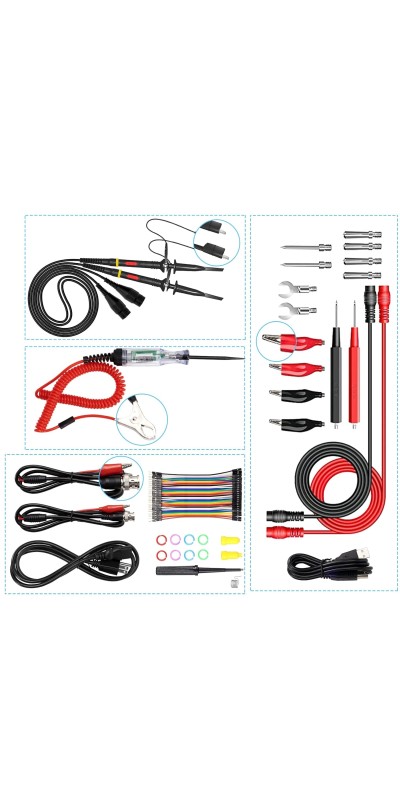

- Package: 1*Oscilloscope; 1*Probe(1.5m);1*power line;1*USB line;2 * Alligator Clip Line;1*pc software CD; 1*user manuel;
Built-in Signal Generator
- 1CH 25MHz
- Supports arbitrary waveform burst output, support modulation waveform output

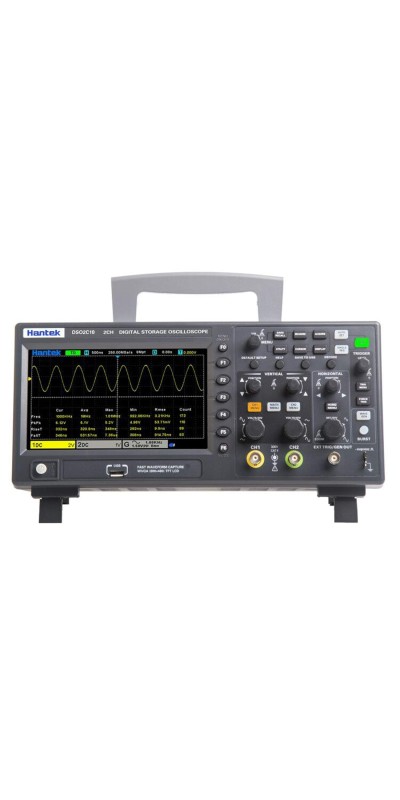

Auto Measurements
- Supports 32 types of auto measurements with statistics
Waveform Record
- Can save 10 sets of referance waveform, CSV waveform and setting;
- USB one-click screenshot
Double CH DVM
- Supports 5-digit digital voltmeter and 6-digit hardware frequency counter functions.
Serial Bus Decoding
- displays the decoding through the events list. Bus protocol information can be quickly and intuitively displayed in a tabular format
Pass/ Fail Function
Math & FFT Function

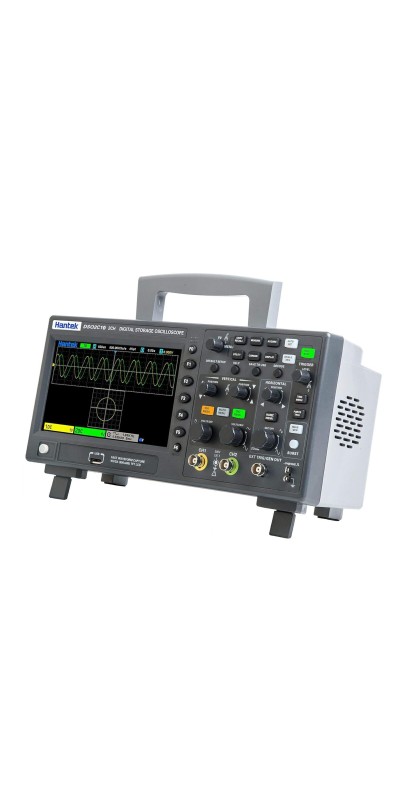

X-Y Format
- Supports X-Y format and display in dual windows
Product Description
The DSO2000 Series oscilloscope is the latest model from Hantek in 2020, which upgrades from original DSO5000P series, but with better cost. It employs a new generation of technology that provides excellent signal fidelity and performance.
It covers the bandwidths from 100MHz to 150MHz, and provide the real-time up to 1GSa/s. In addition, they have 7 inch color TFT LCD as well as WINDOWS-style interfaces and menus for easy operation.

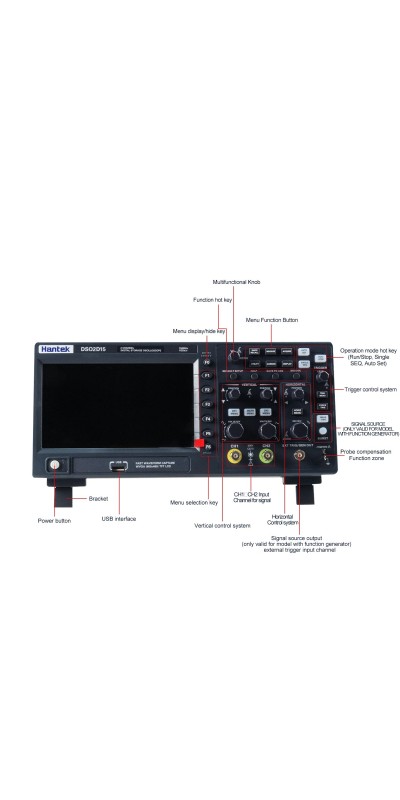

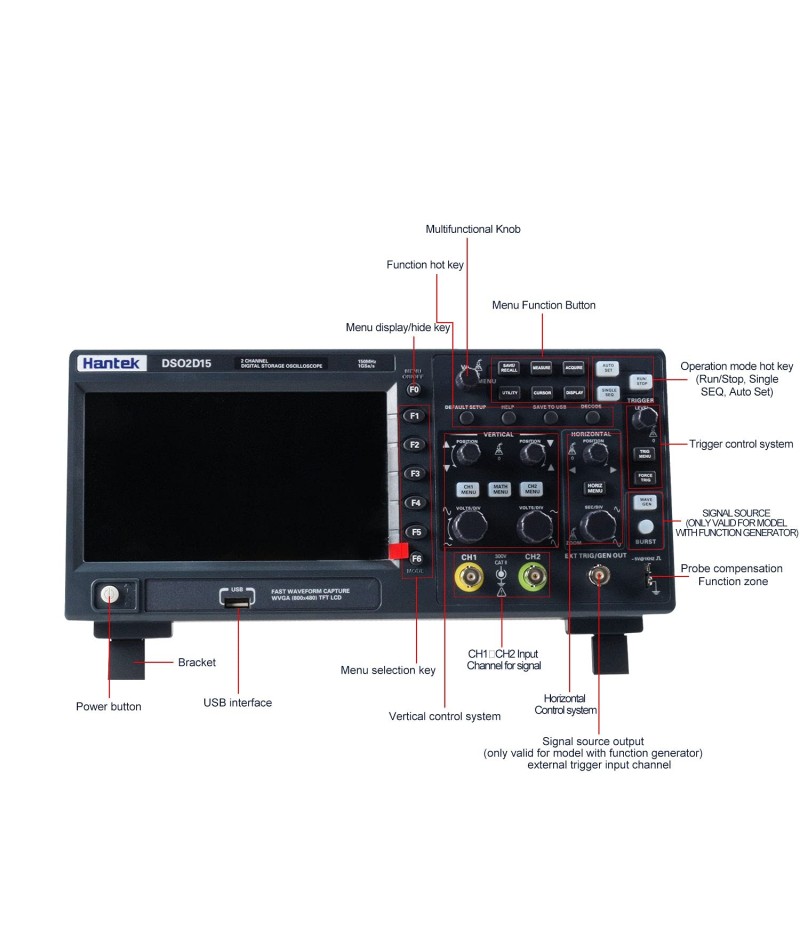

What’s more, the plenty menu information and the easy-to-operate buttons allow you to gain information as much as possible in measurement; the Multifunctional Knobs and the powerful shortcut keys help you save a lot of time in operation; the Auto Scale function lets you detect sine and square waves automatically.

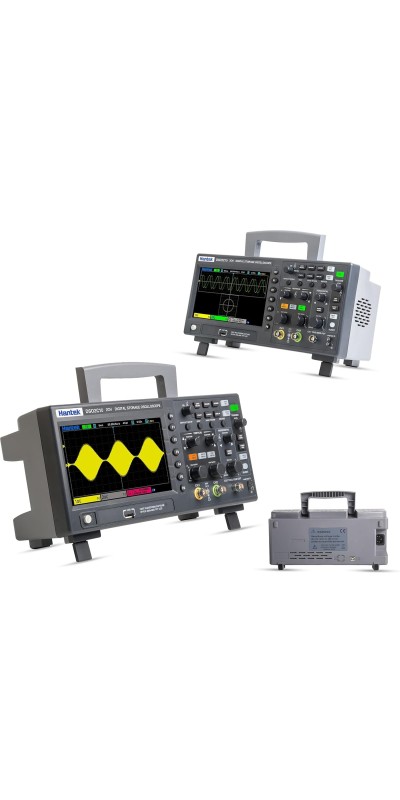

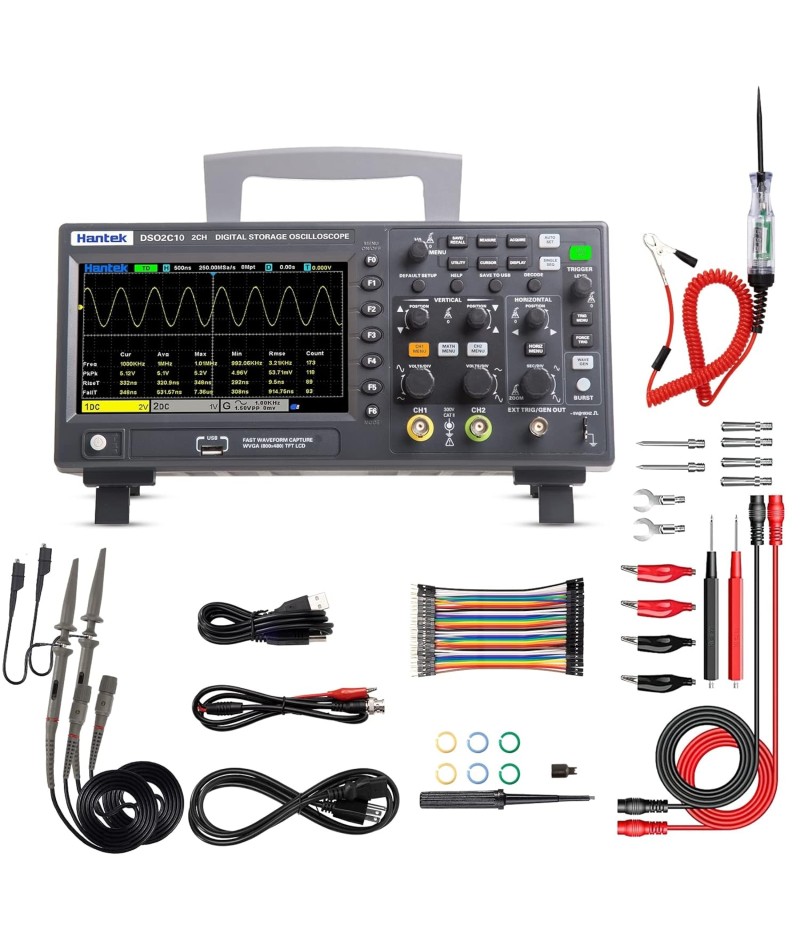

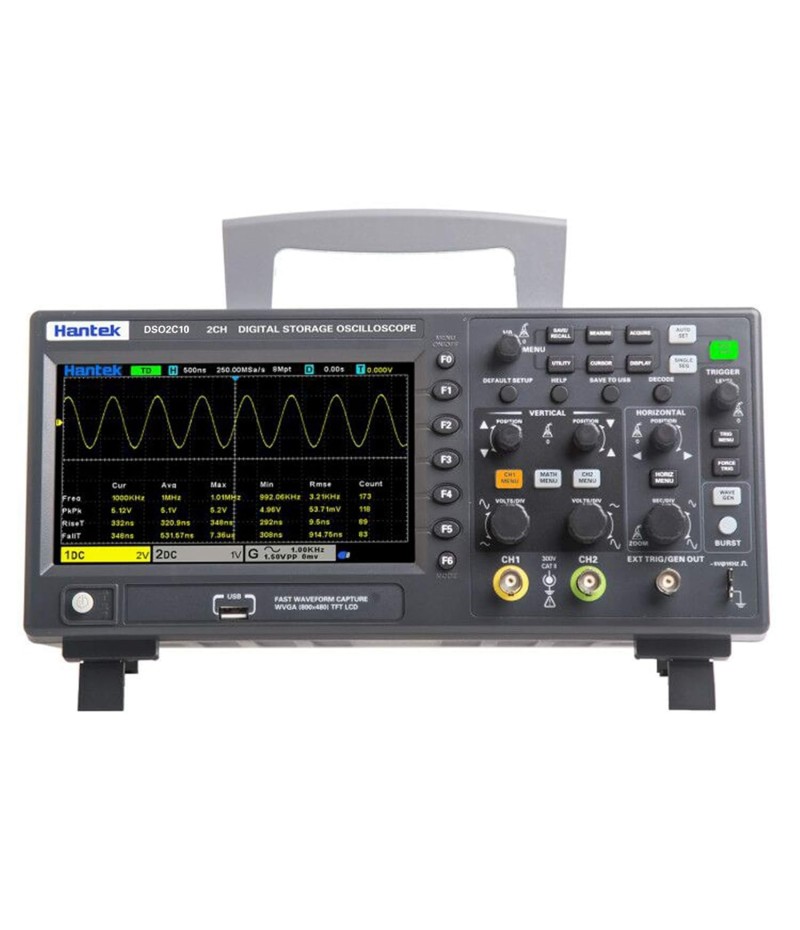

The DSO2000 Series includes 4models: DSO2D15, DSO2C15, DSO2C15, DSO2C10;
| General | |
| Date First Available | November 2, 2020 |
| Manufacturer | Hantek |
| ASIN | B08MDSG839 |
| Product Dimensions | 12.5 x 5.5 x 5.9 inches; 5.5 Pounds |
| Item model number | Hantek DSO2D15 |
