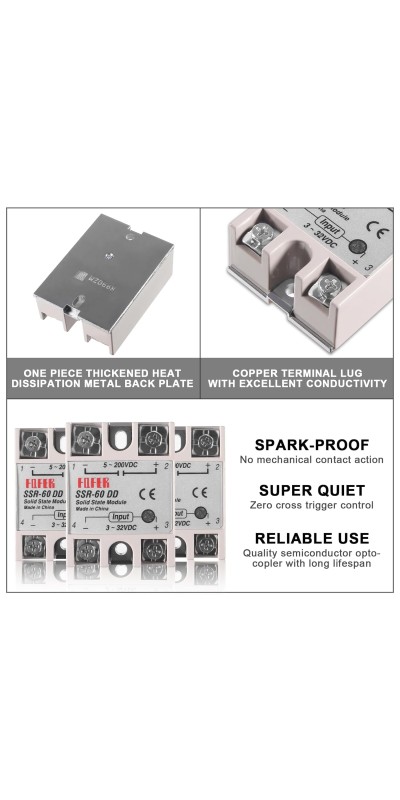

- 【Optocoupler】: Core components of solid state relay quick switch speed, withstand voltage high.
- 【High Strength Screw】: High toughness anti rust screw material, not easy to break sliding wire. The column is made of red copper do.

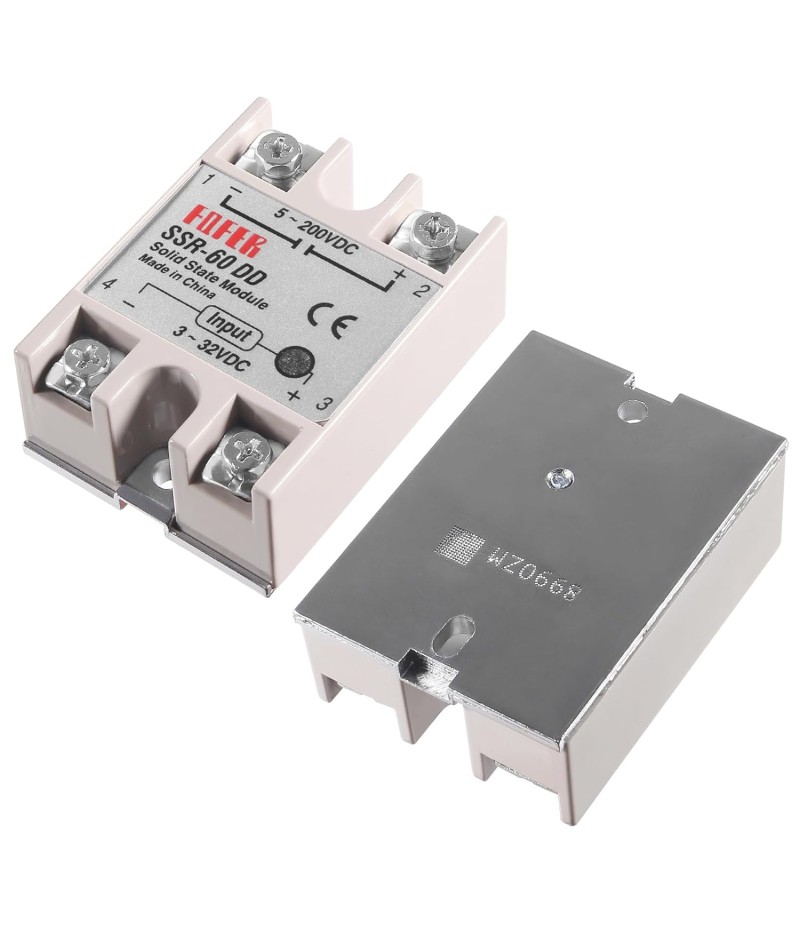

- 【Rugged Case】: Excellent high temperature resistance is adopted for the shell. Burning material, bright luster, durable.

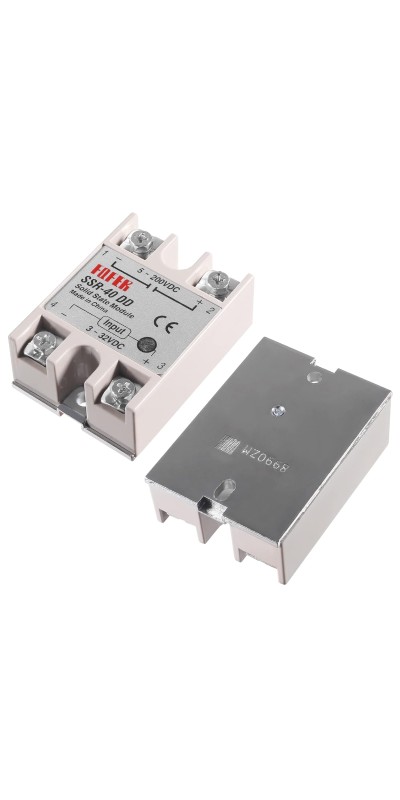

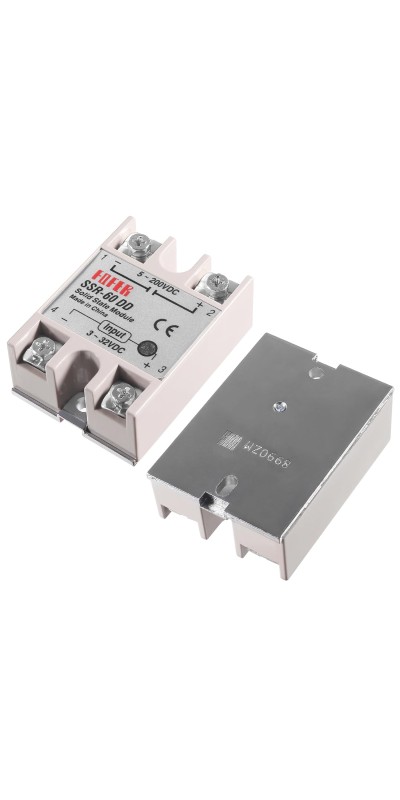

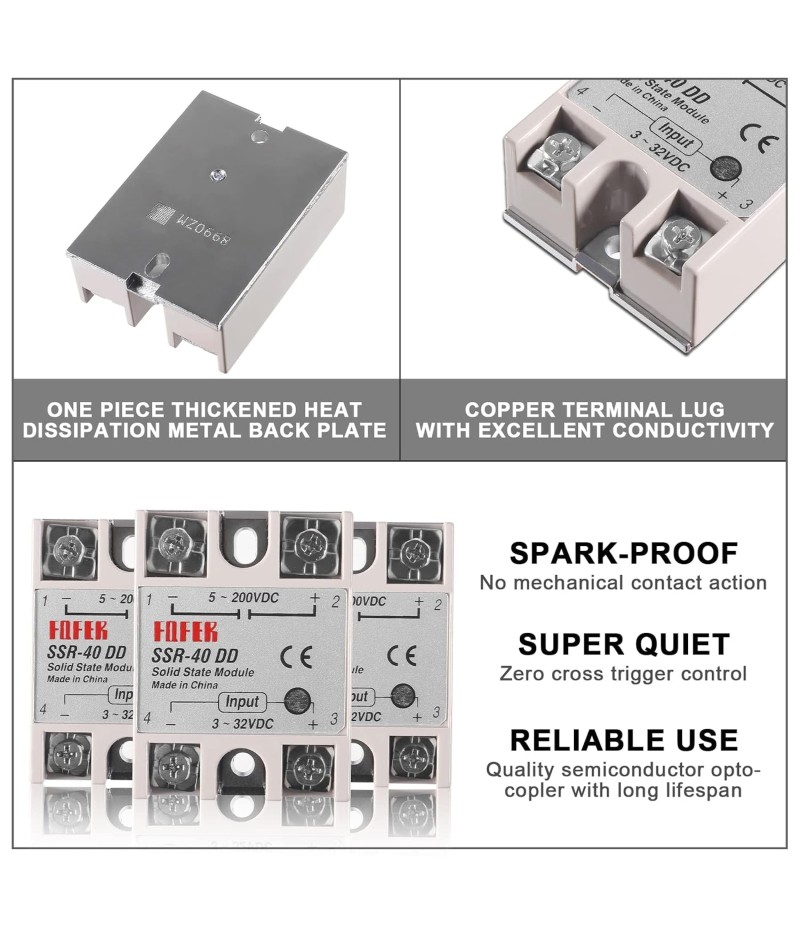

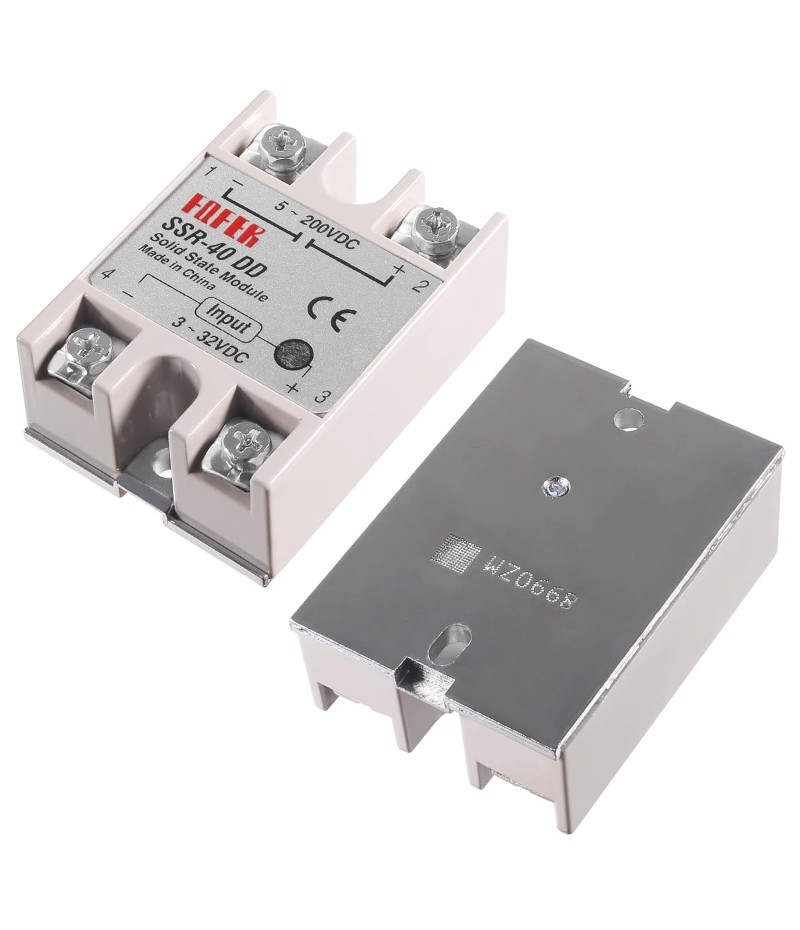

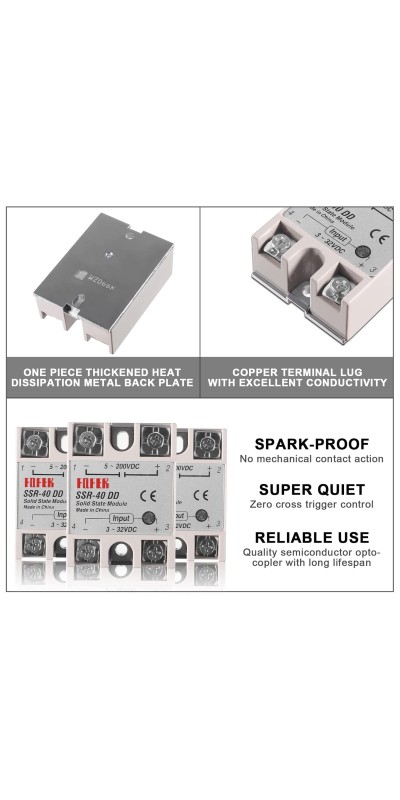

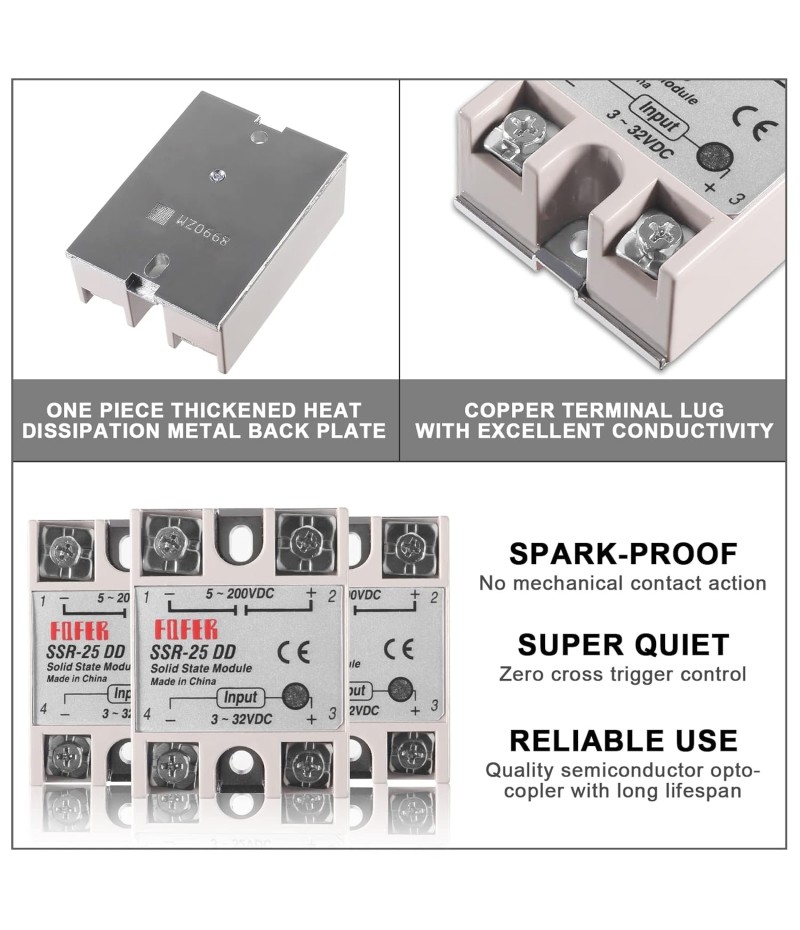

- 【Special Plating】: High purity copper base plate obvious heat dissipation effect, long time. It is not easy to heat when used between rooms.

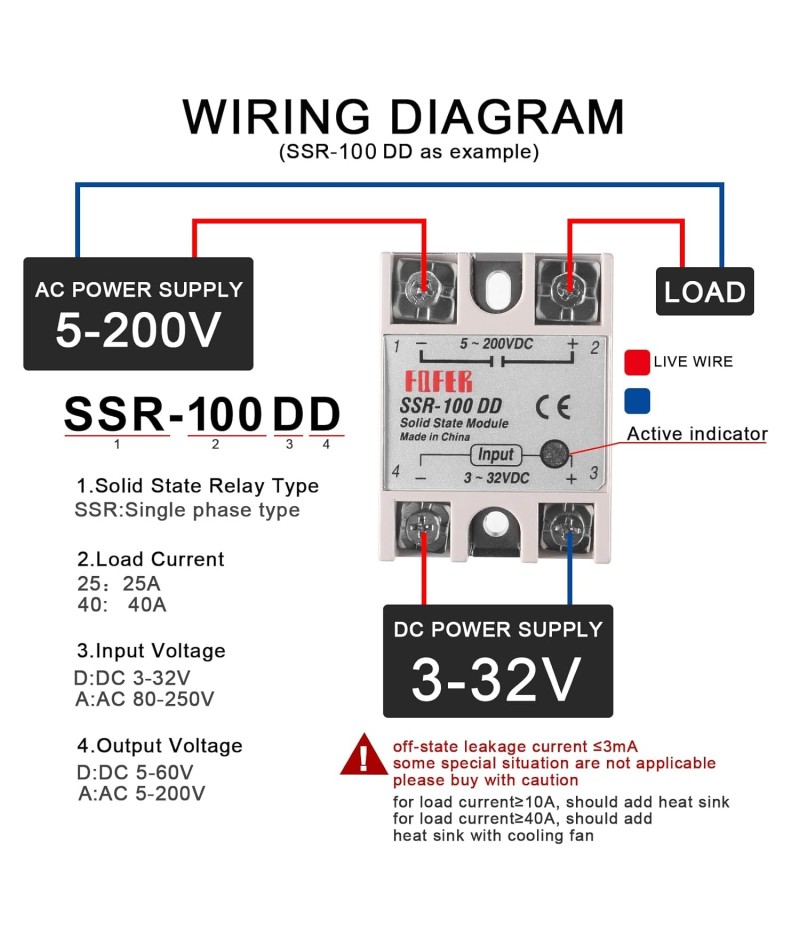

- 【Note】: The solid-state relay generates a lot of heat. When the load current is greater than 10A, it needs to be used with a radiator. Apply thermal grease between the solid-state relay base plate and the radiator, and the fan is forced to cool if it is above 60A.
Specification:

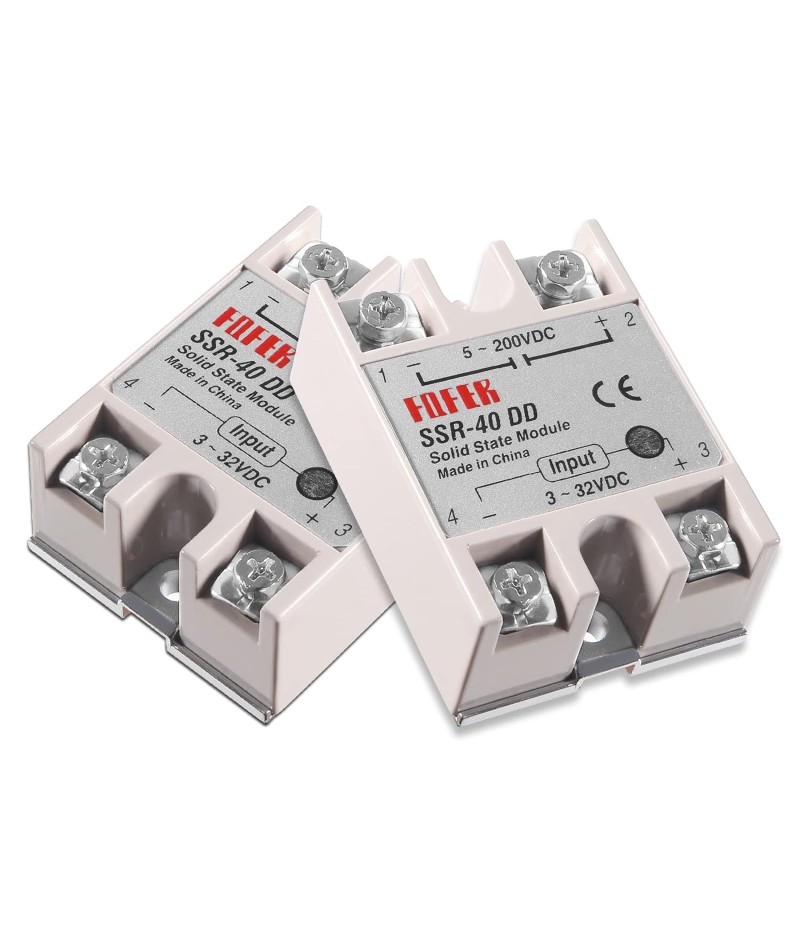

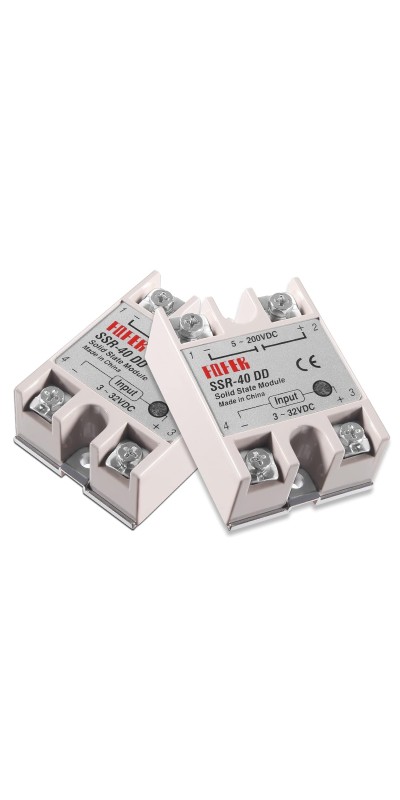

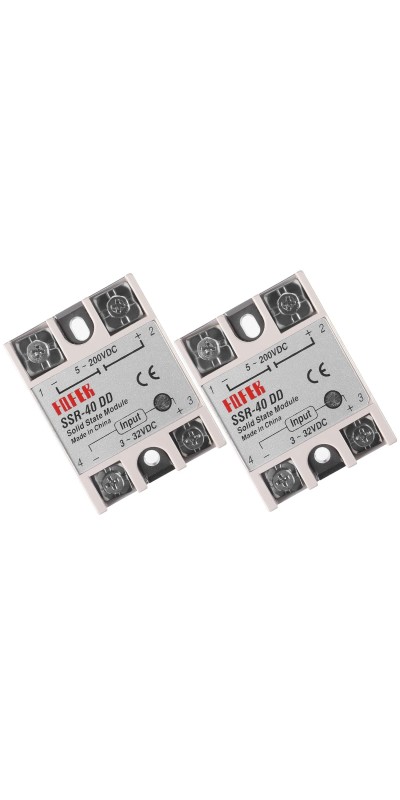

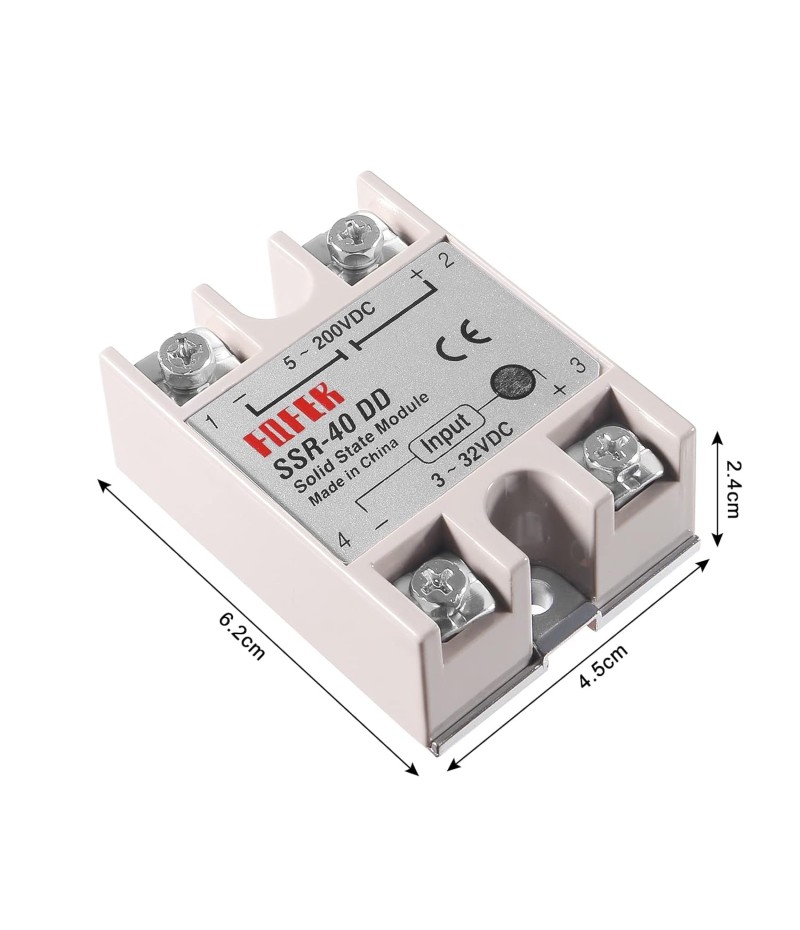

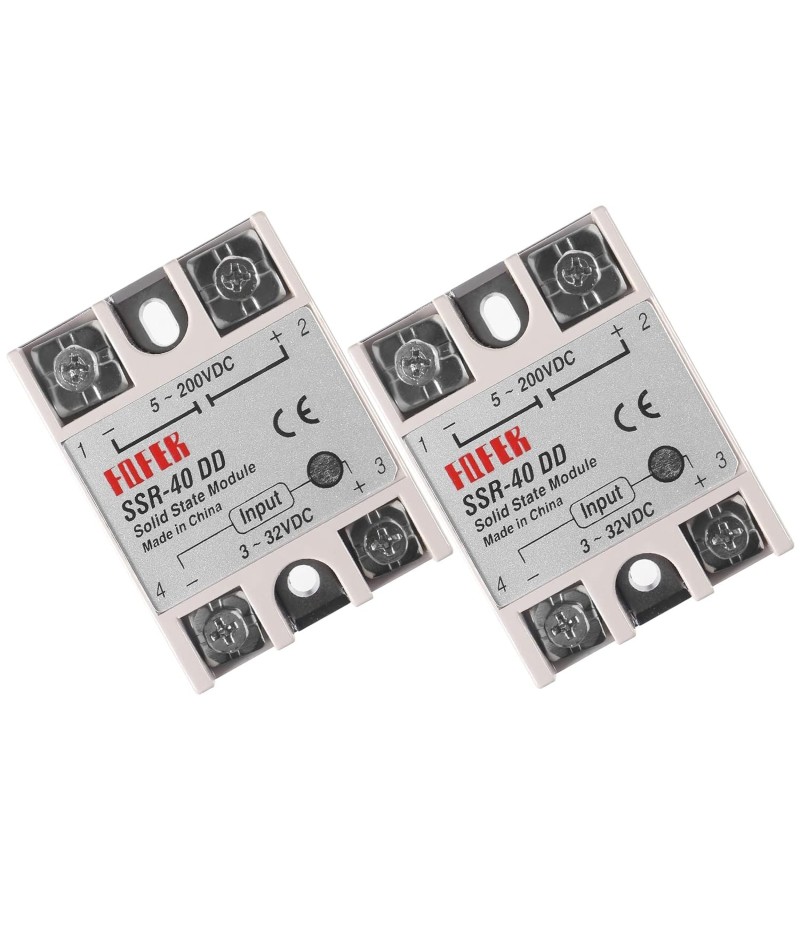

Product Name: SSR-40DD Solid State Relay
Control Current: 3-35MA
Control Voltage: 3-32VDC
Load Voltage: 5-200VDC
Rated Current: 40A
On-state Buck: ≤1.6V
On-off Time: ≤10MS
Ambient Temperature: -30°C ~ +70°C
Product Weight: 0.1KG
| General | |
| Date First Available | December 27, 2021 |
| Manufacturer | Alinan |
| ASIN | B09P8B97ZN |

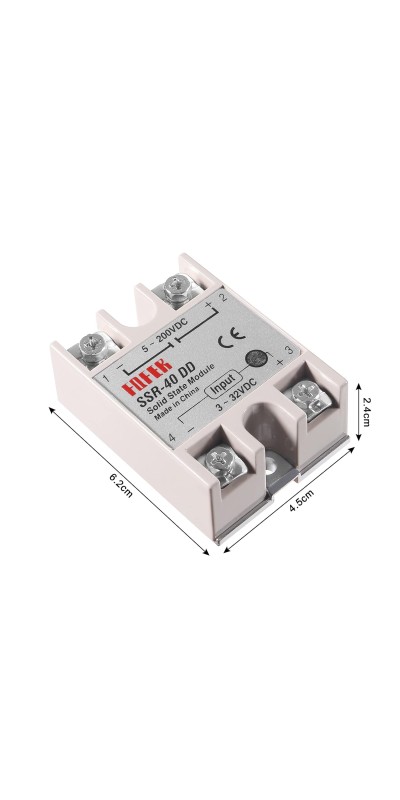

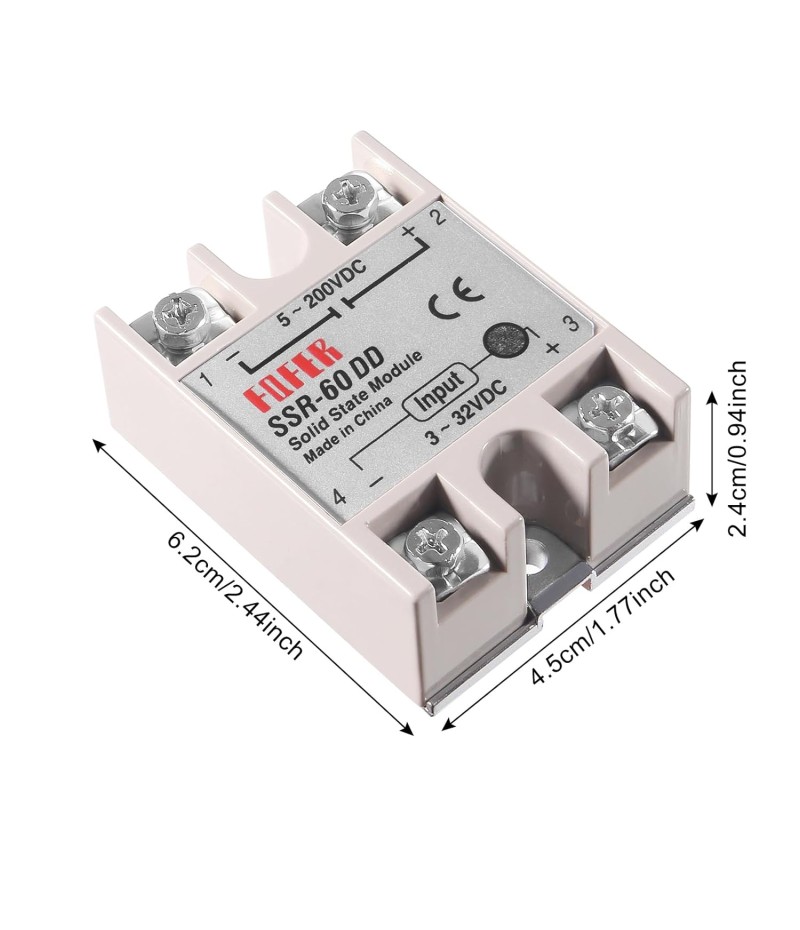

| Product Dimensions | 0.18 x 0.14 x 0.03 inches; 3.35 ounces |
| Item model number | Alinan |
